1978 Piper PA-34-200T Seneca LH Wing P/N 37093-03 (0423-104)

$13,800.00 $0.00
Shipping calculated at checkout.

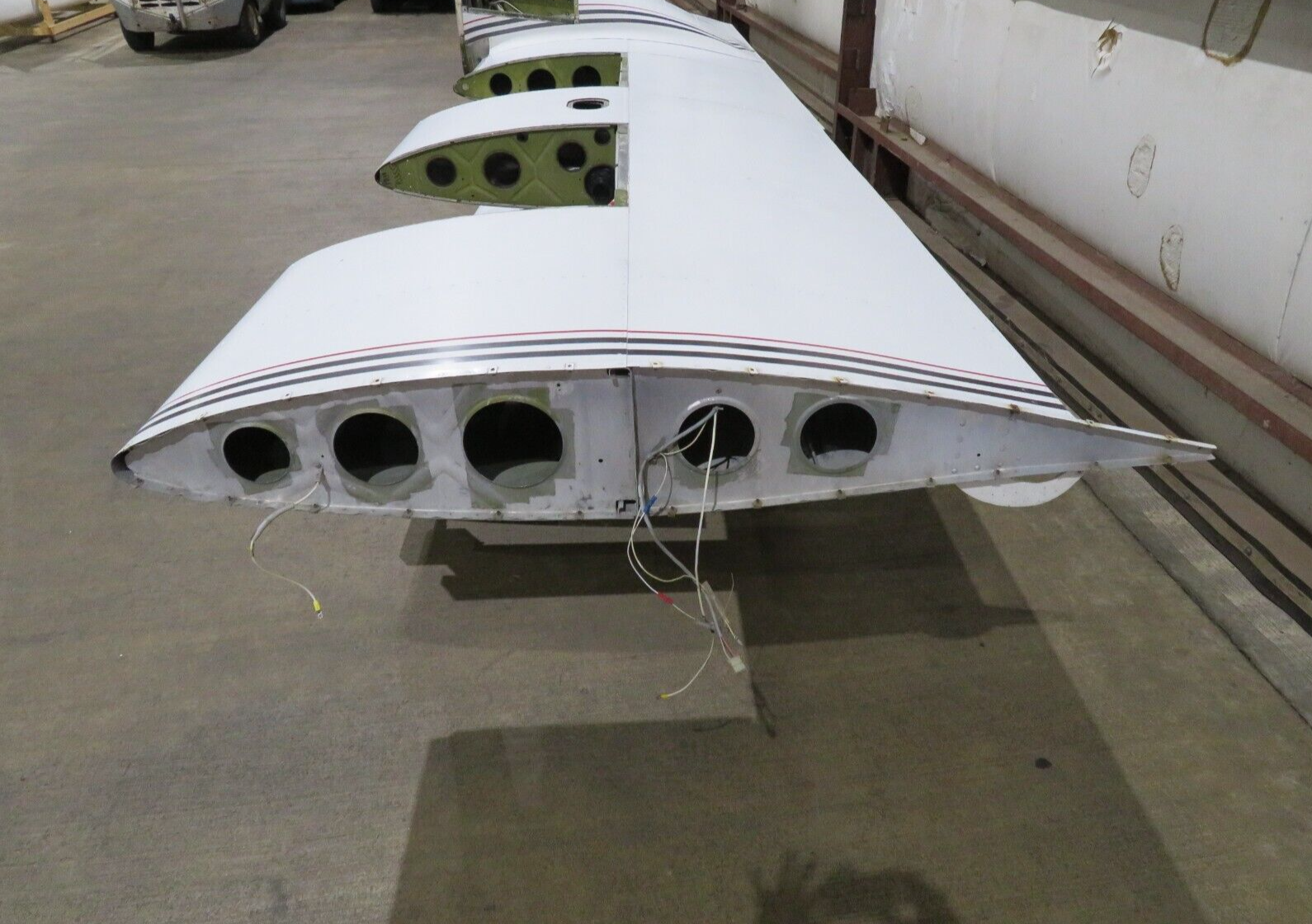

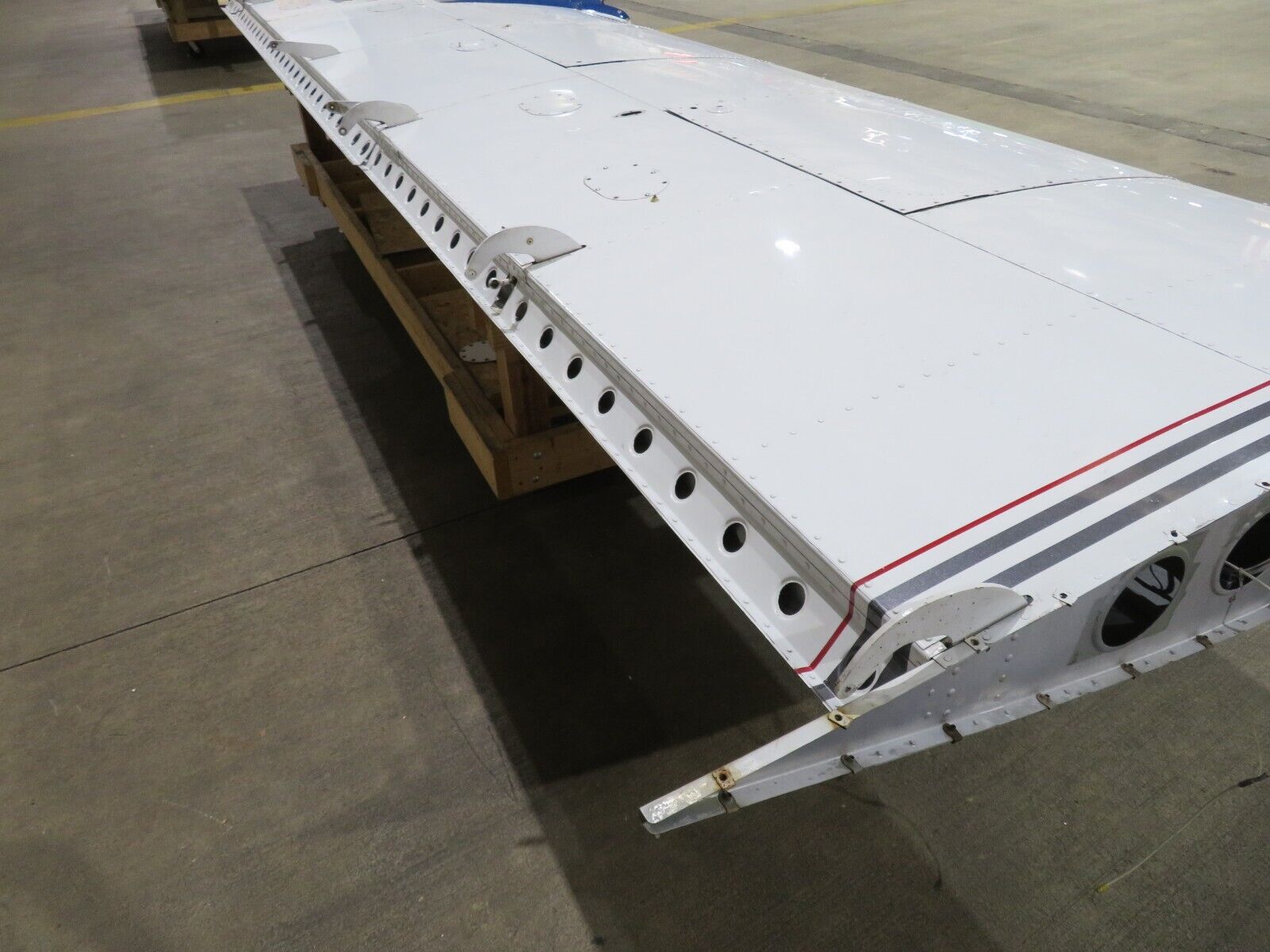

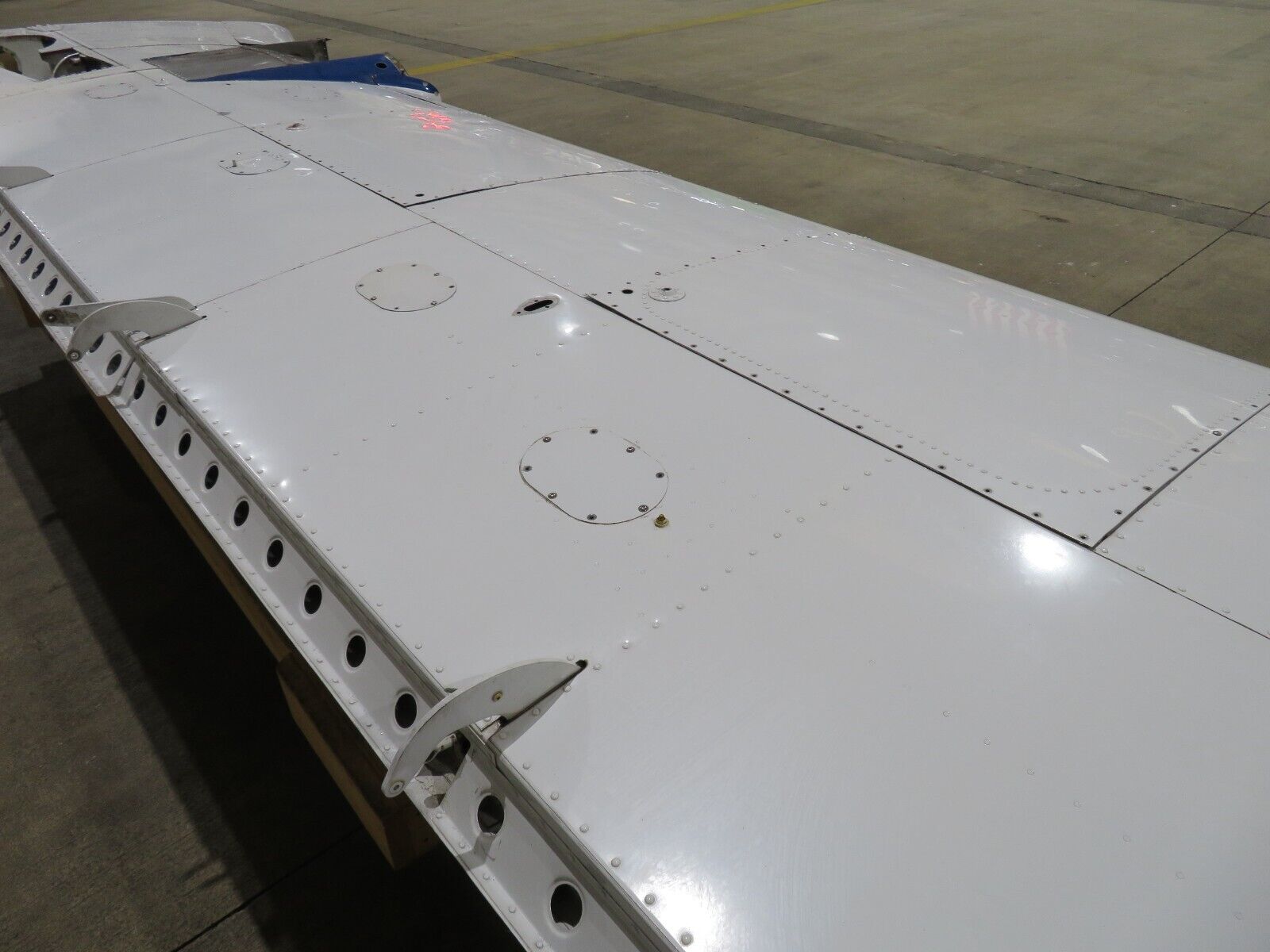

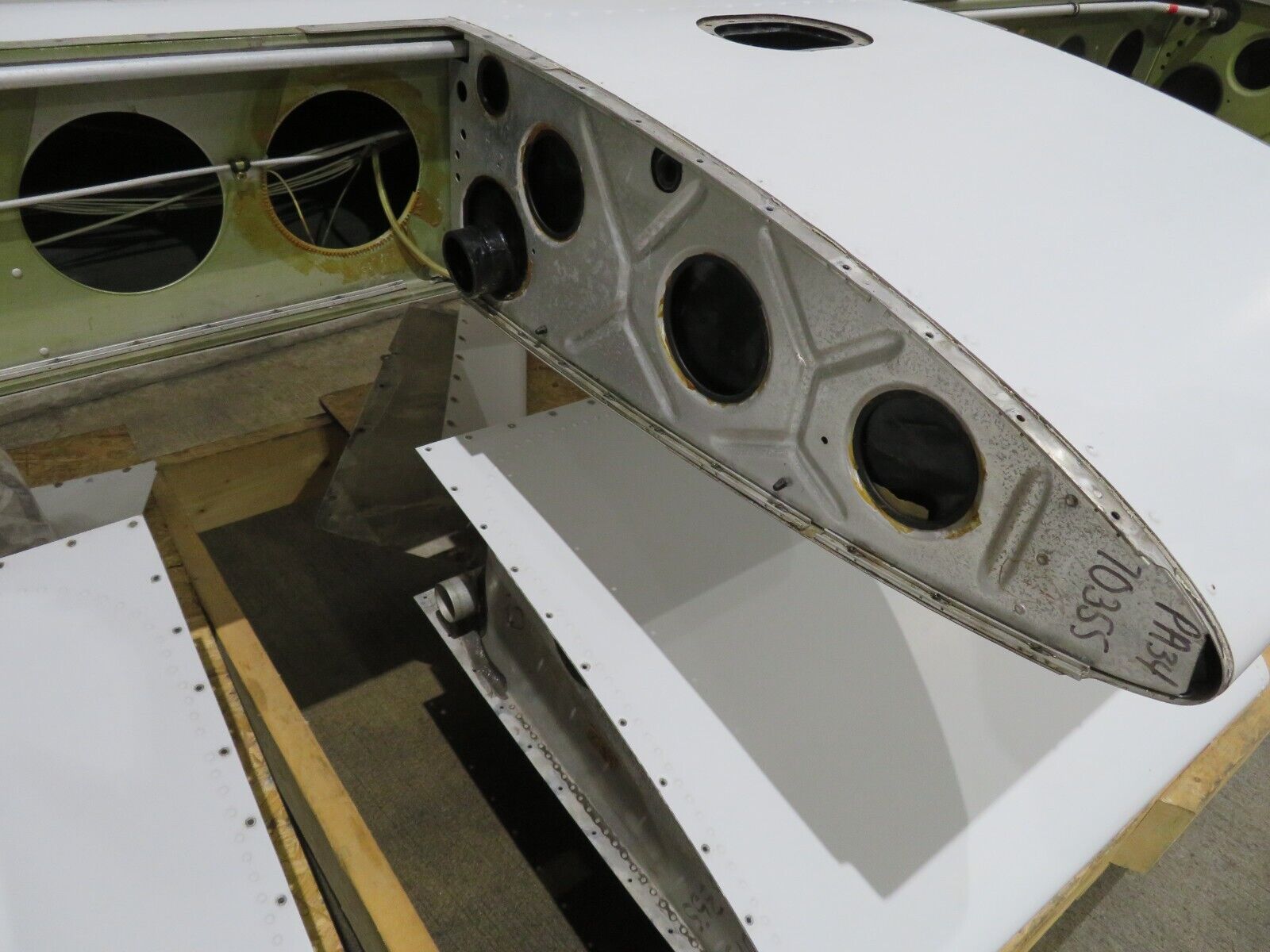

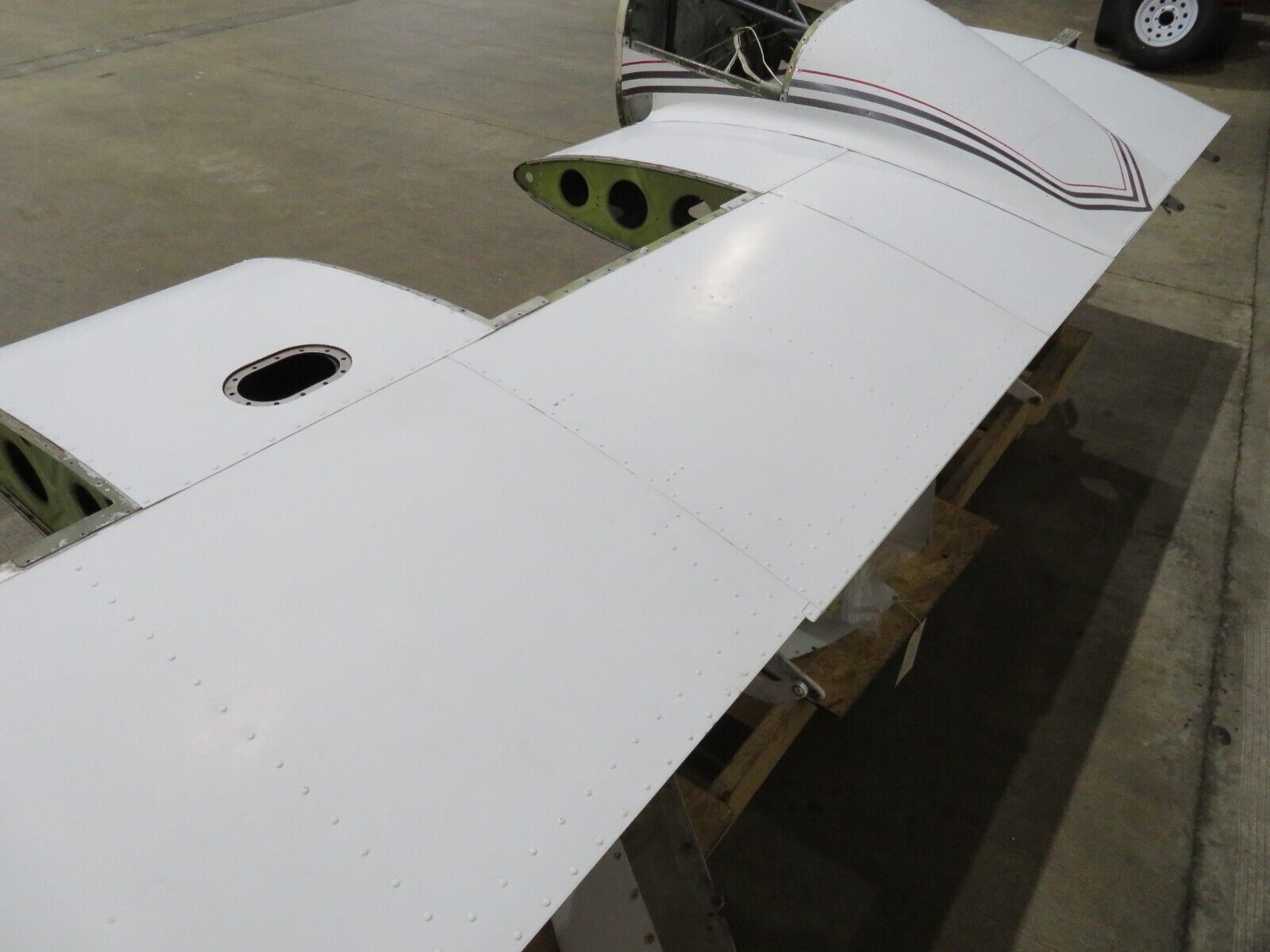

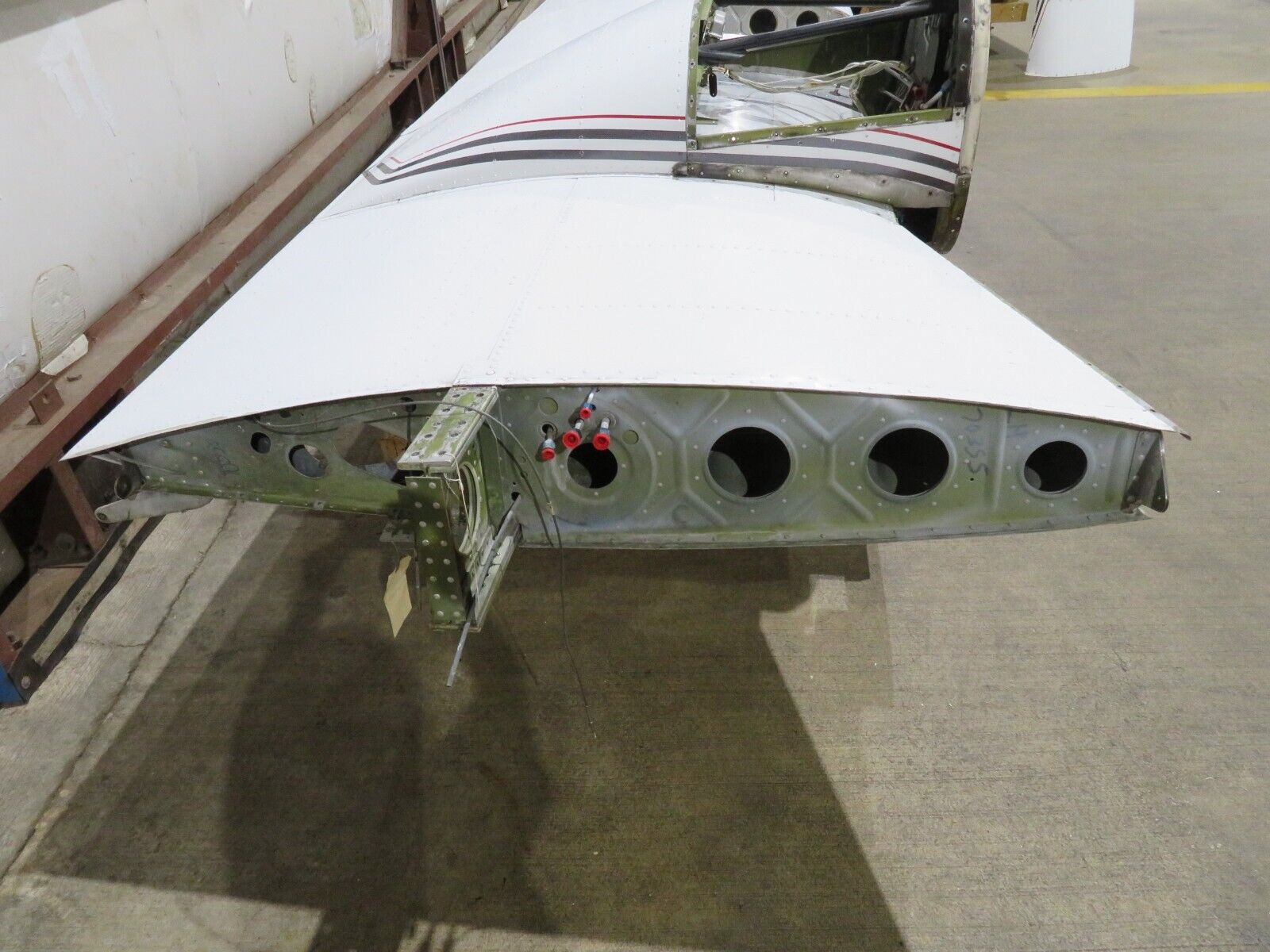

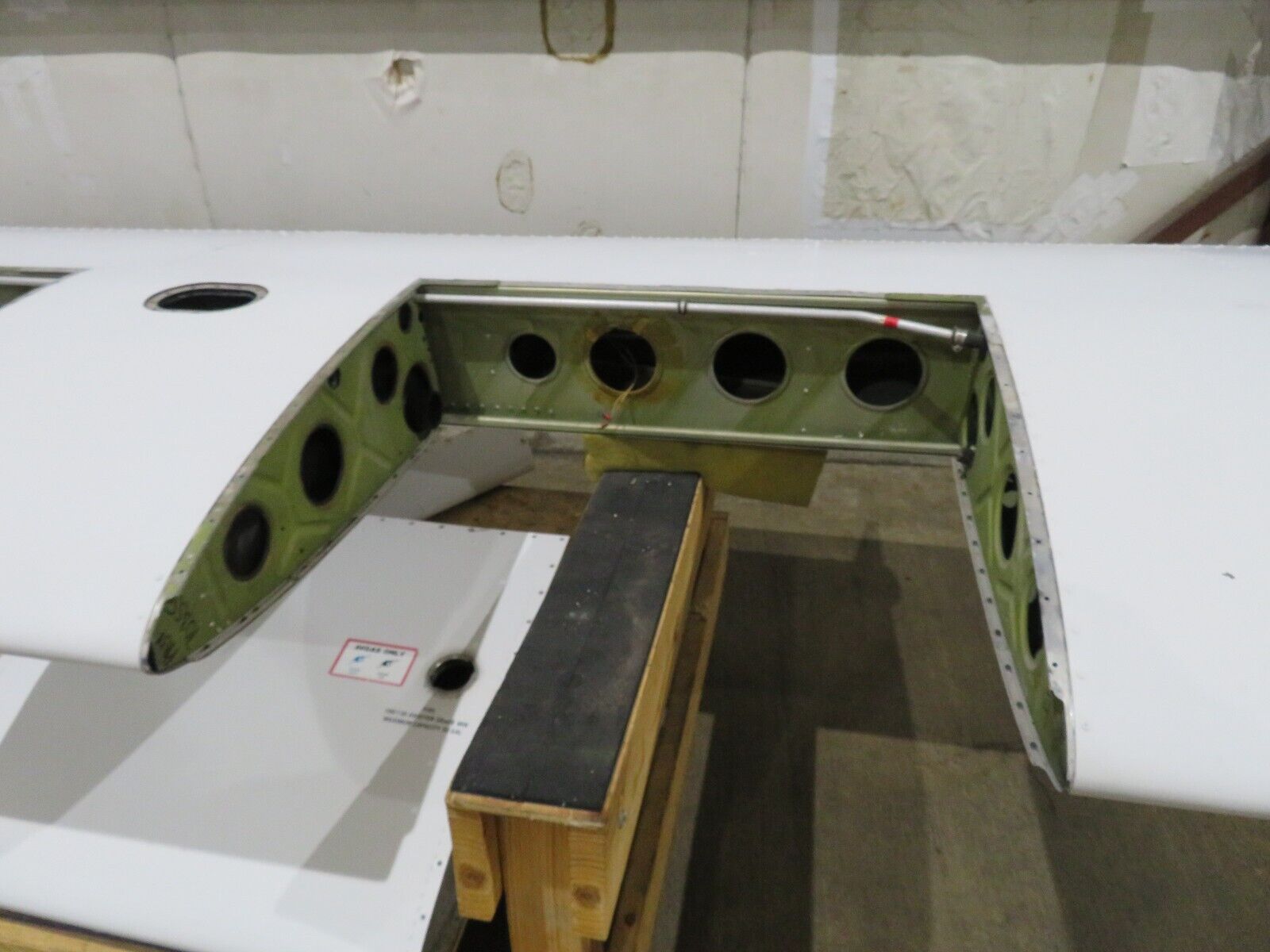

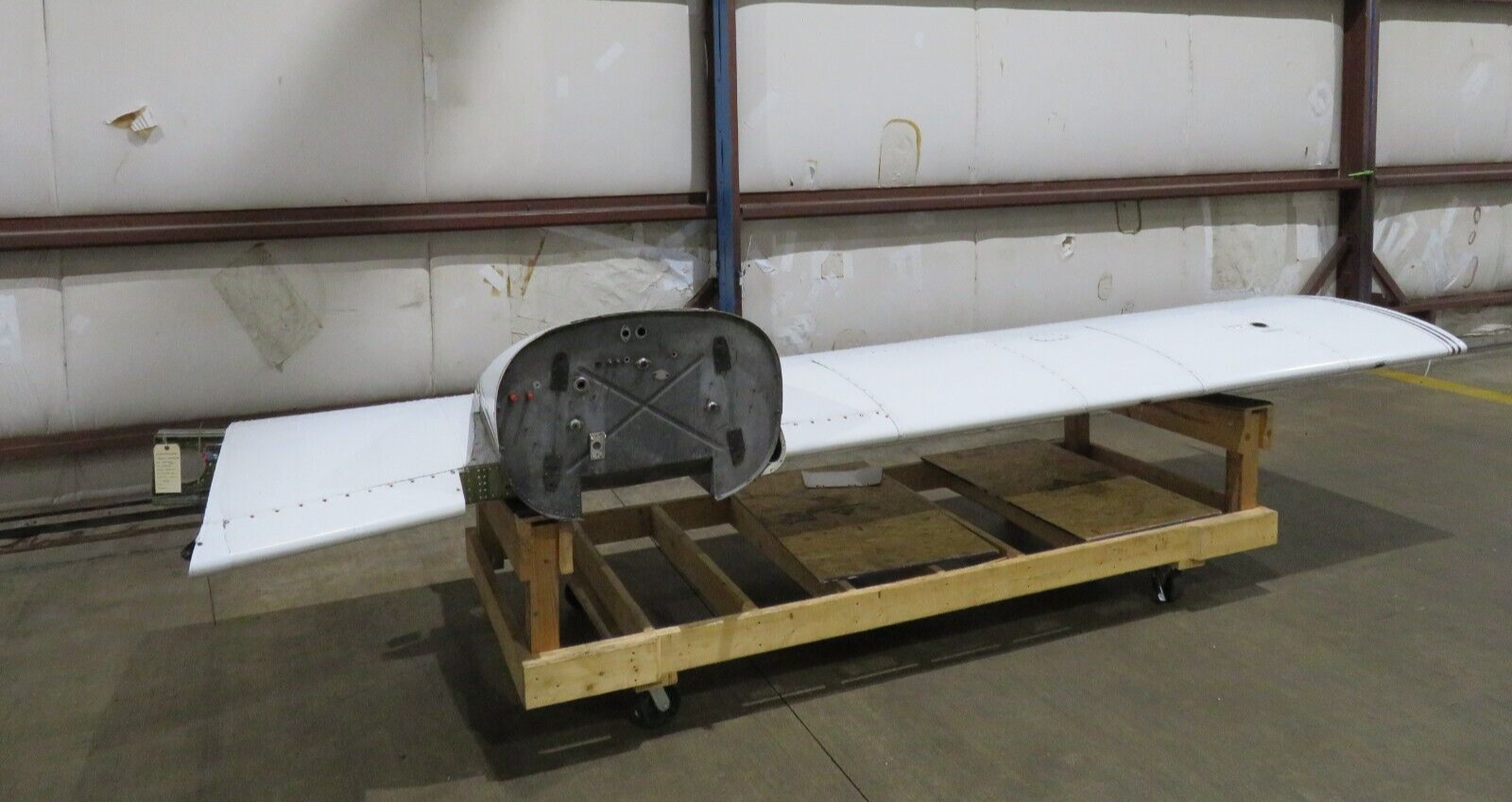

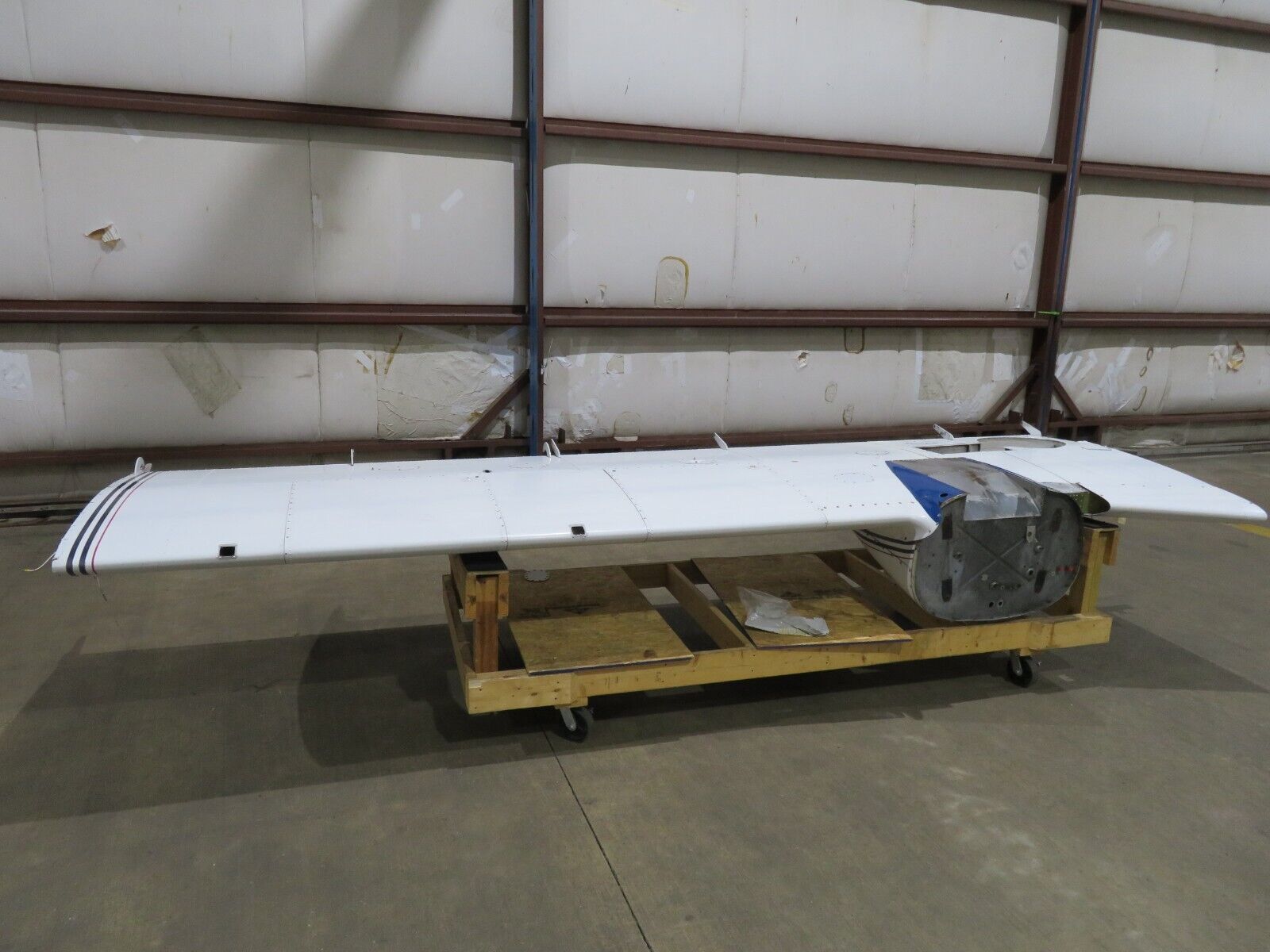

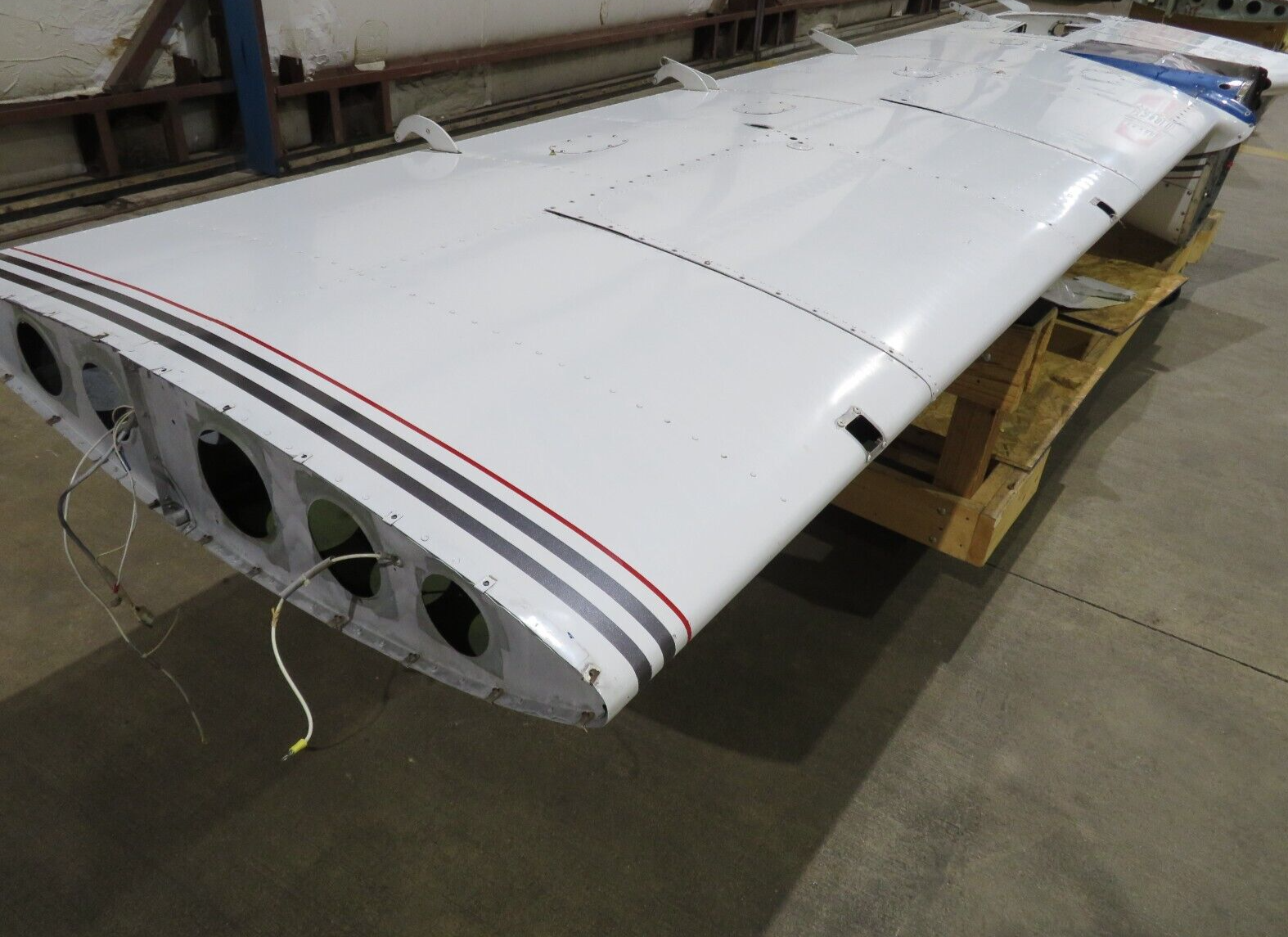

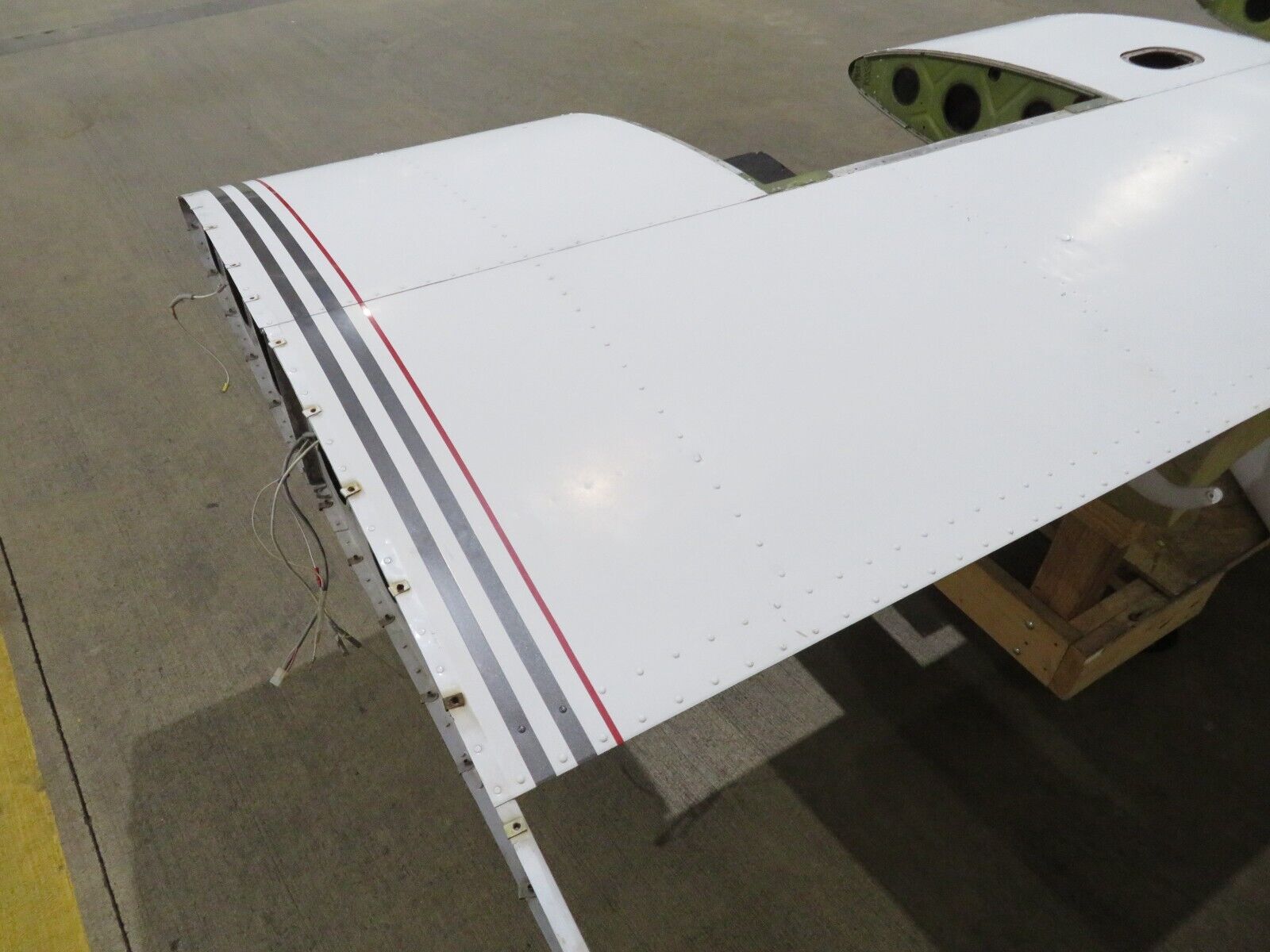

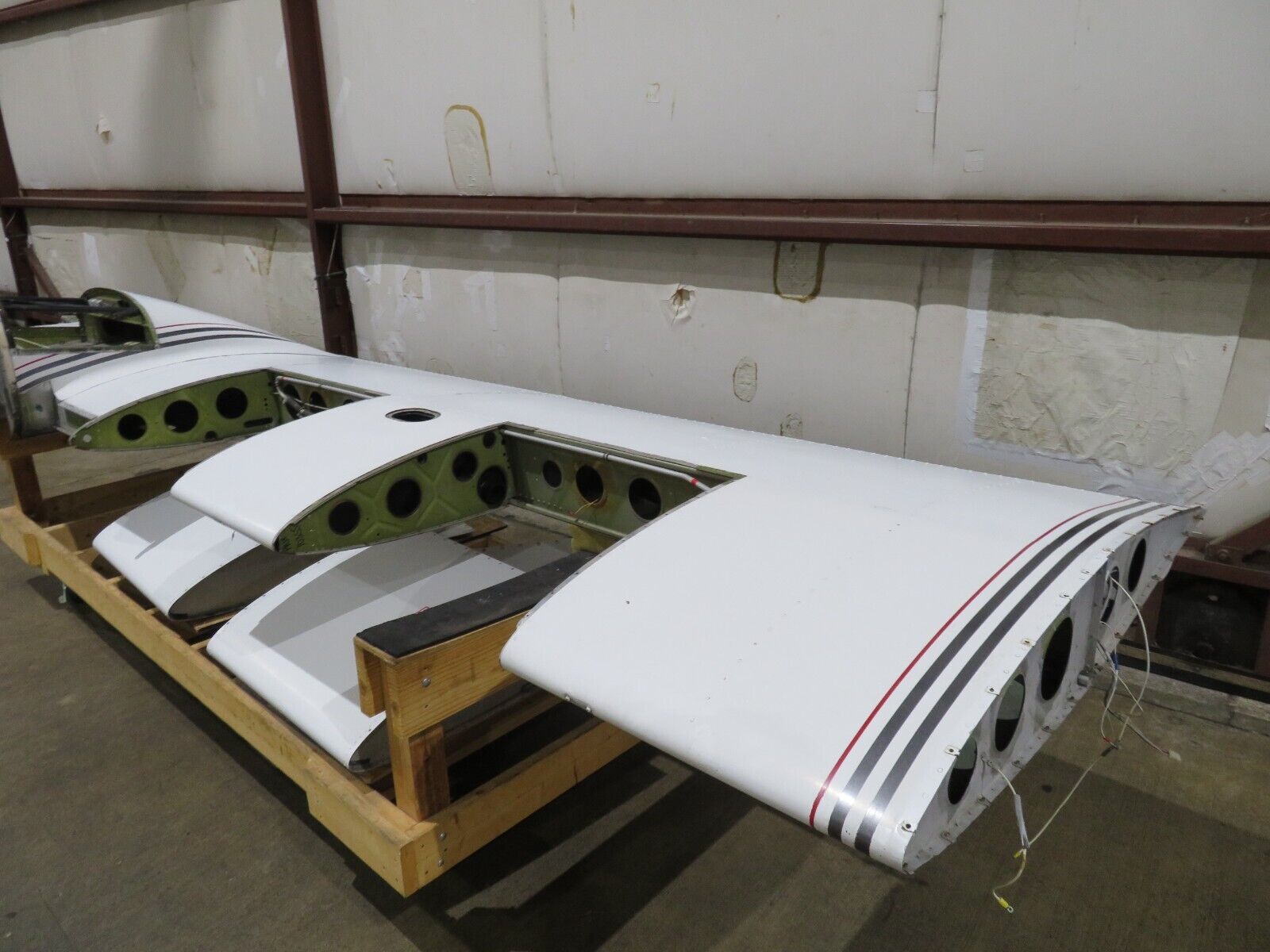

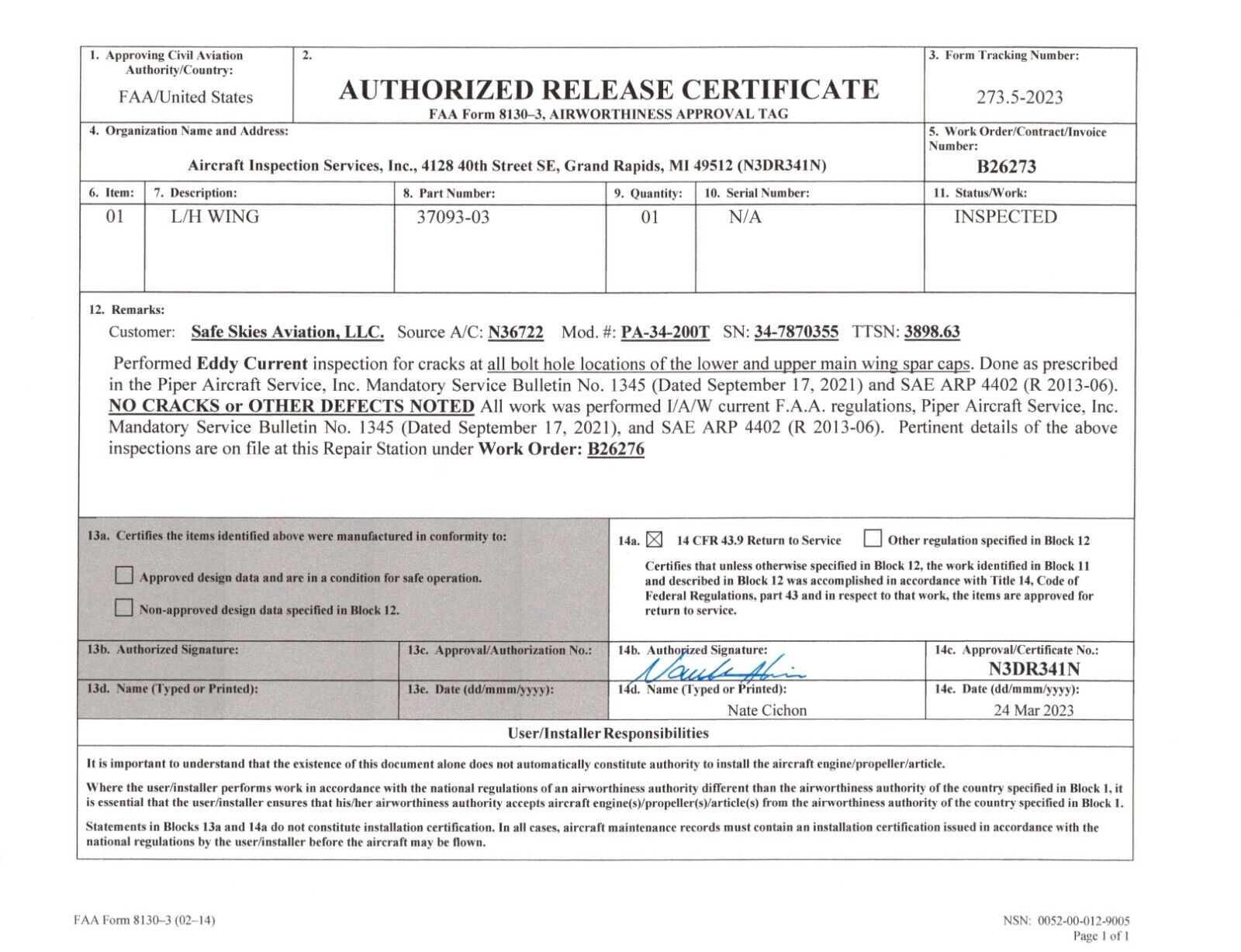

Piper PA-34-200T Left Hand Wing with Fuel Tank. P/N 37093-03. Removed from parted out 1971 Piper PA-34-200T N36722, S/N 34-7870355. Aircraft TT 3898.63. Spar passed Eddy Current inspection per Piper Mandatory Service Bulletin No. 1345A (Dated September 17, 2021) and SAE ARP 4402 (R 2013-06). 8130 included.

Guaranteed to pass inspection or your money back. LOCAL PICK-UP.

This wing was inspected by one of our A&P mechanics and the following items were noted:

Paint Condition: Fair
Hail Damage: No
Dents: Few minor.
Previous Repairs: None
Leading Edge Condition: Good, few minor dents
Exterior Corrosion: None

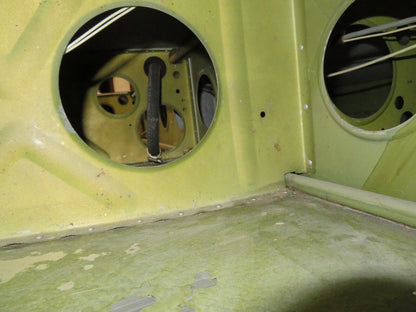

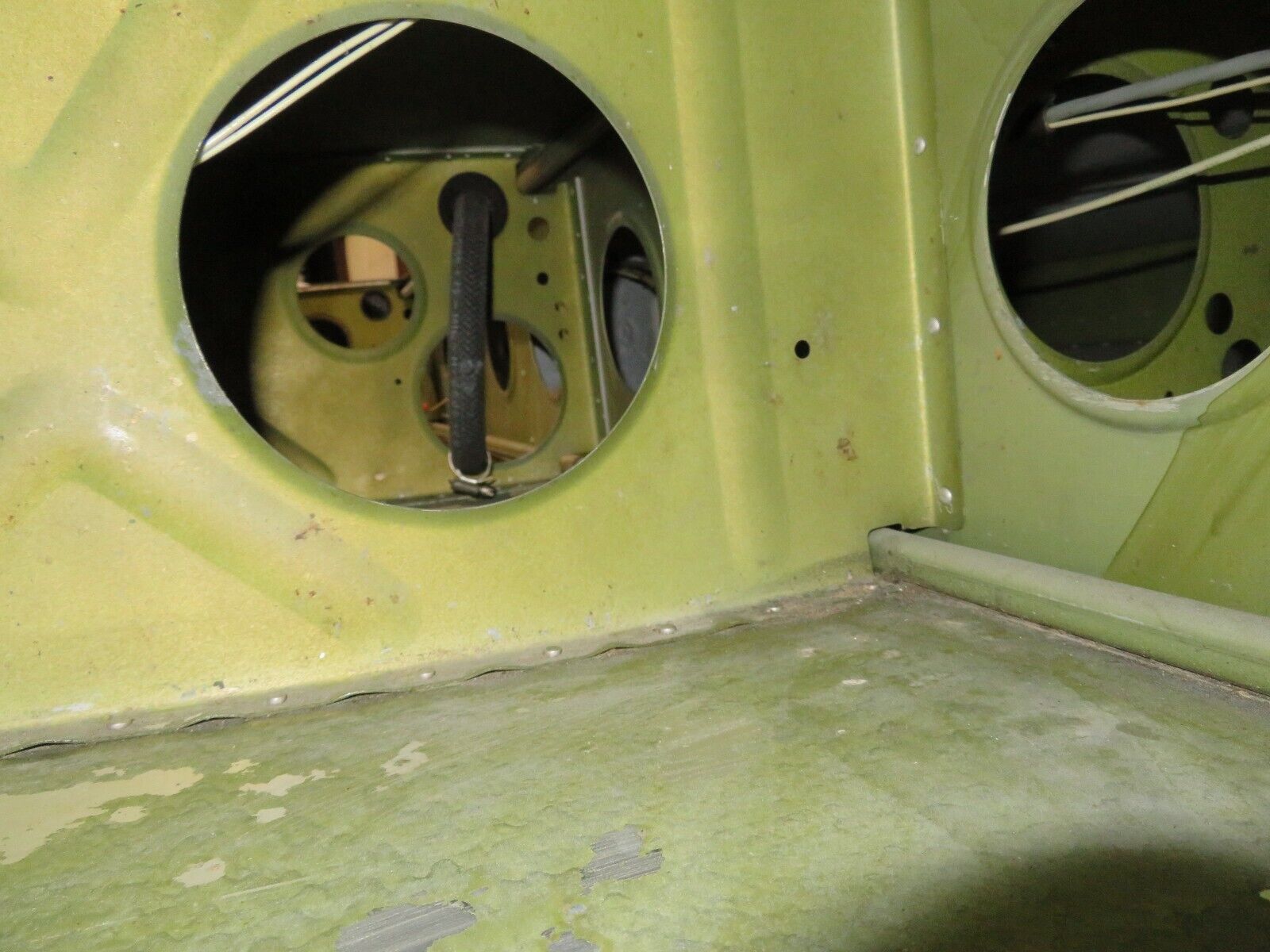

Internal Corrosion: Normal surface corrosion on Top skin OTBD of fuel tank.
Fuel Capacity: 50 Gallons
Fuel Tank: Interior is not sloshed- looks good. Interconnect lines are disconnected

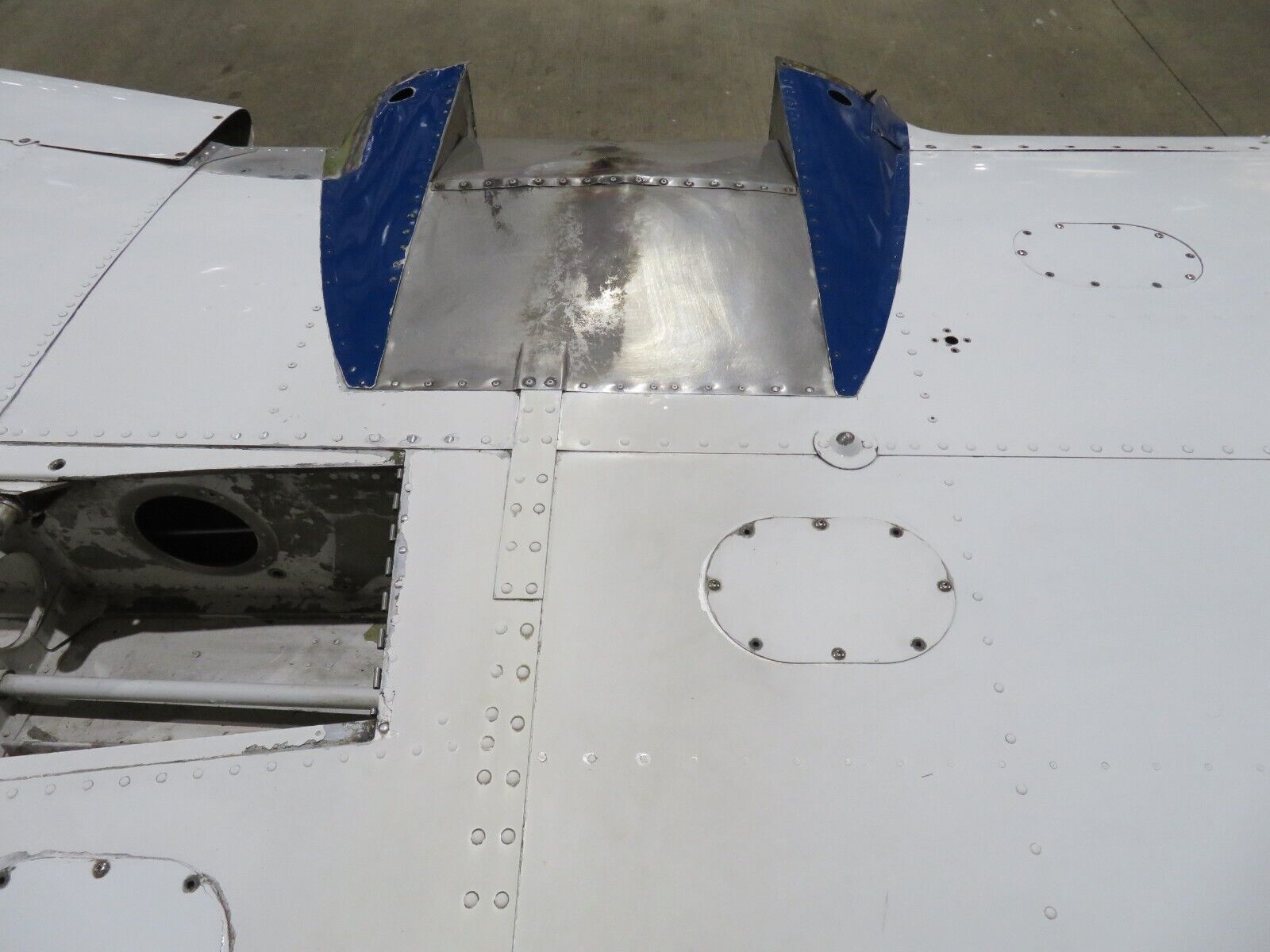

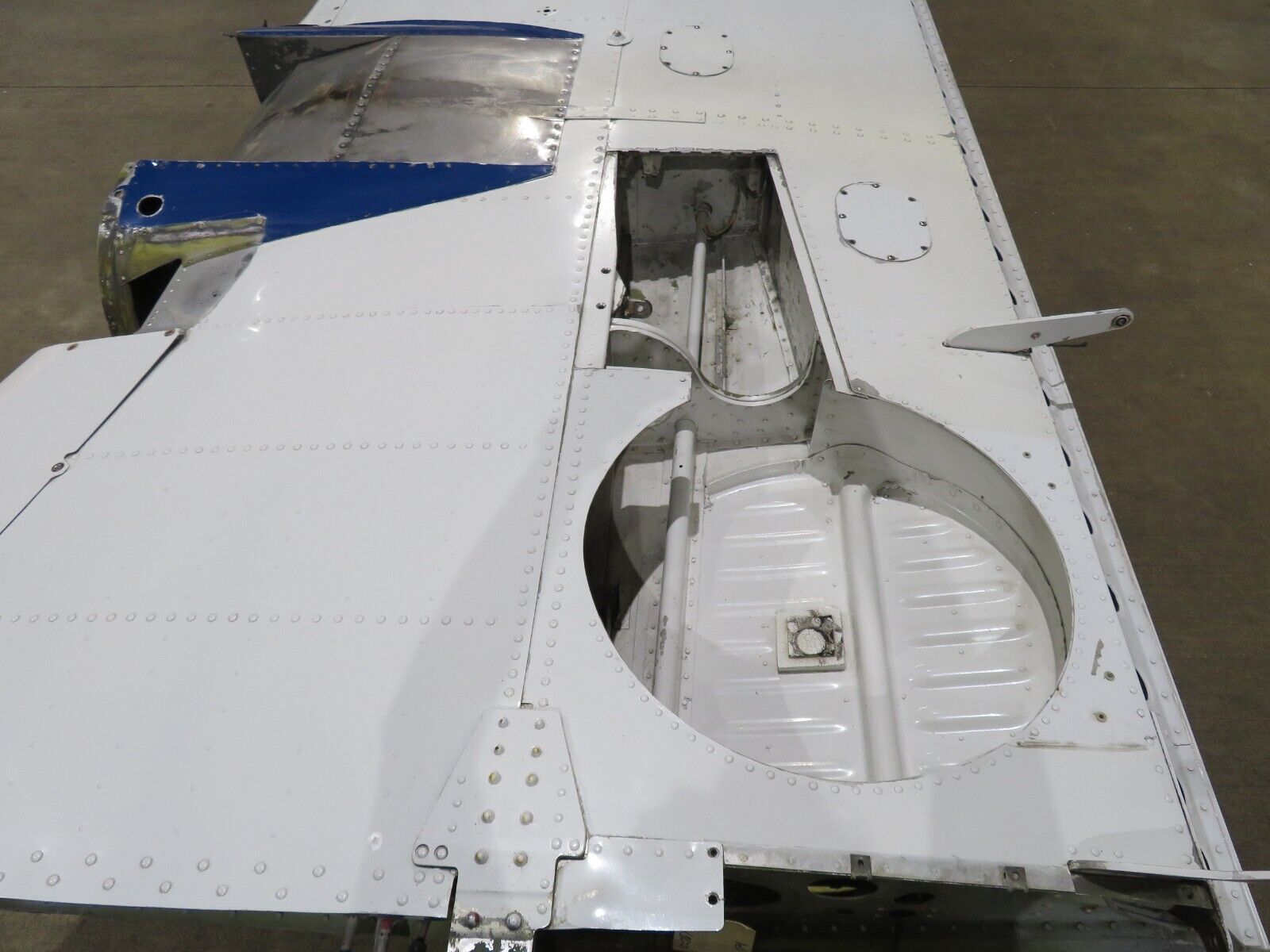

Wingwalk baffles are in good condition.

Parts that have been removed and are not included:
-Landing Gear and Doors
-Nav Lights
-Wing Tips
-Pitot Tube
-Lift Detectors


Parts that are still installed:
-Fuel Tank and Cell
-Aileron Cables
-Aileron Bellcrank

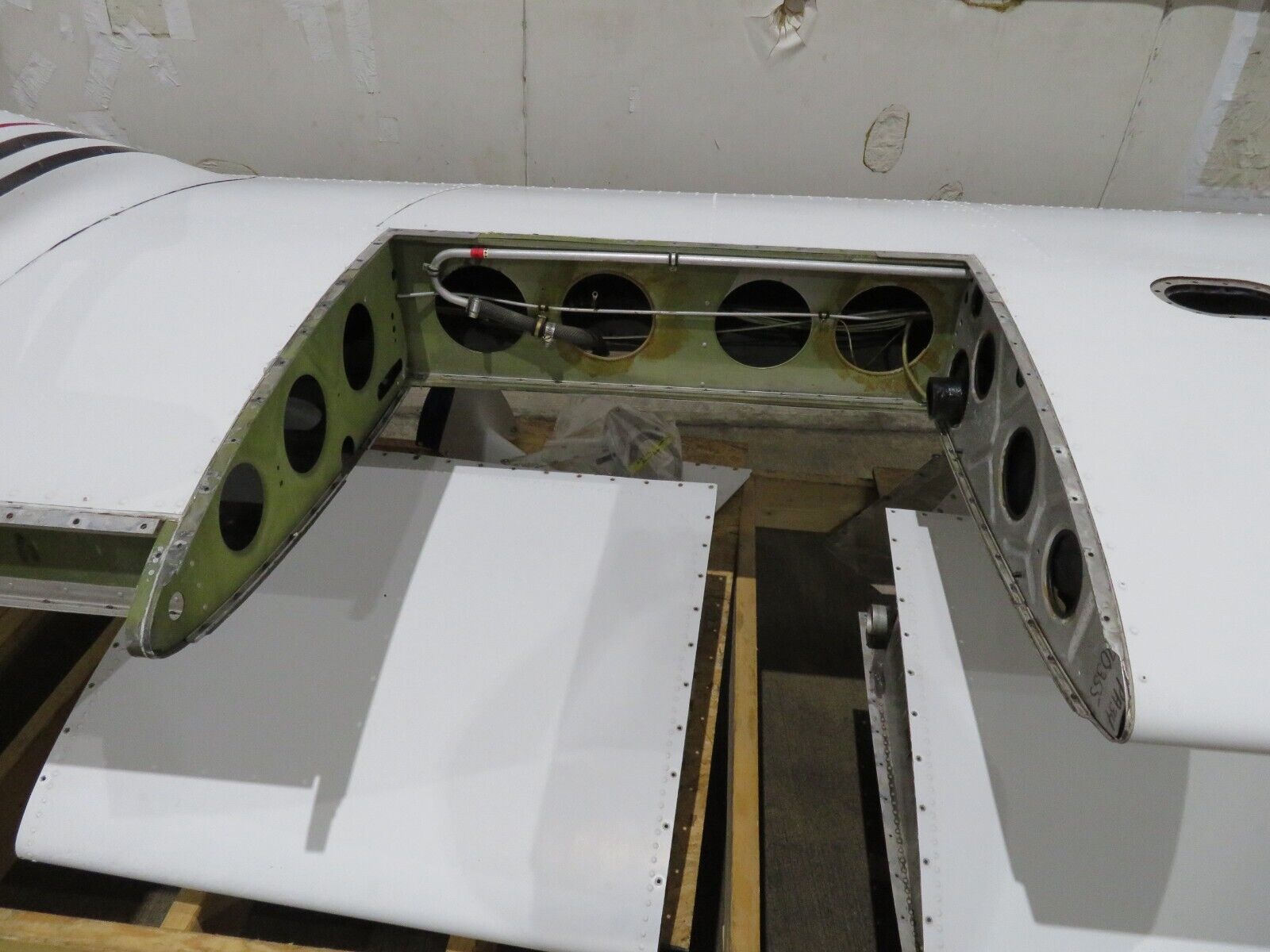

-Fuel Plumbing
-Wiring

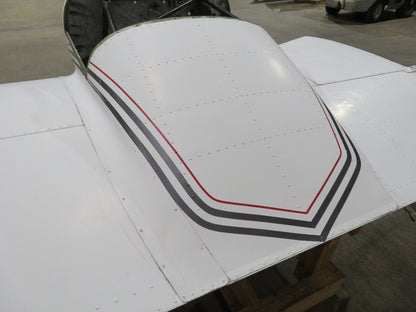

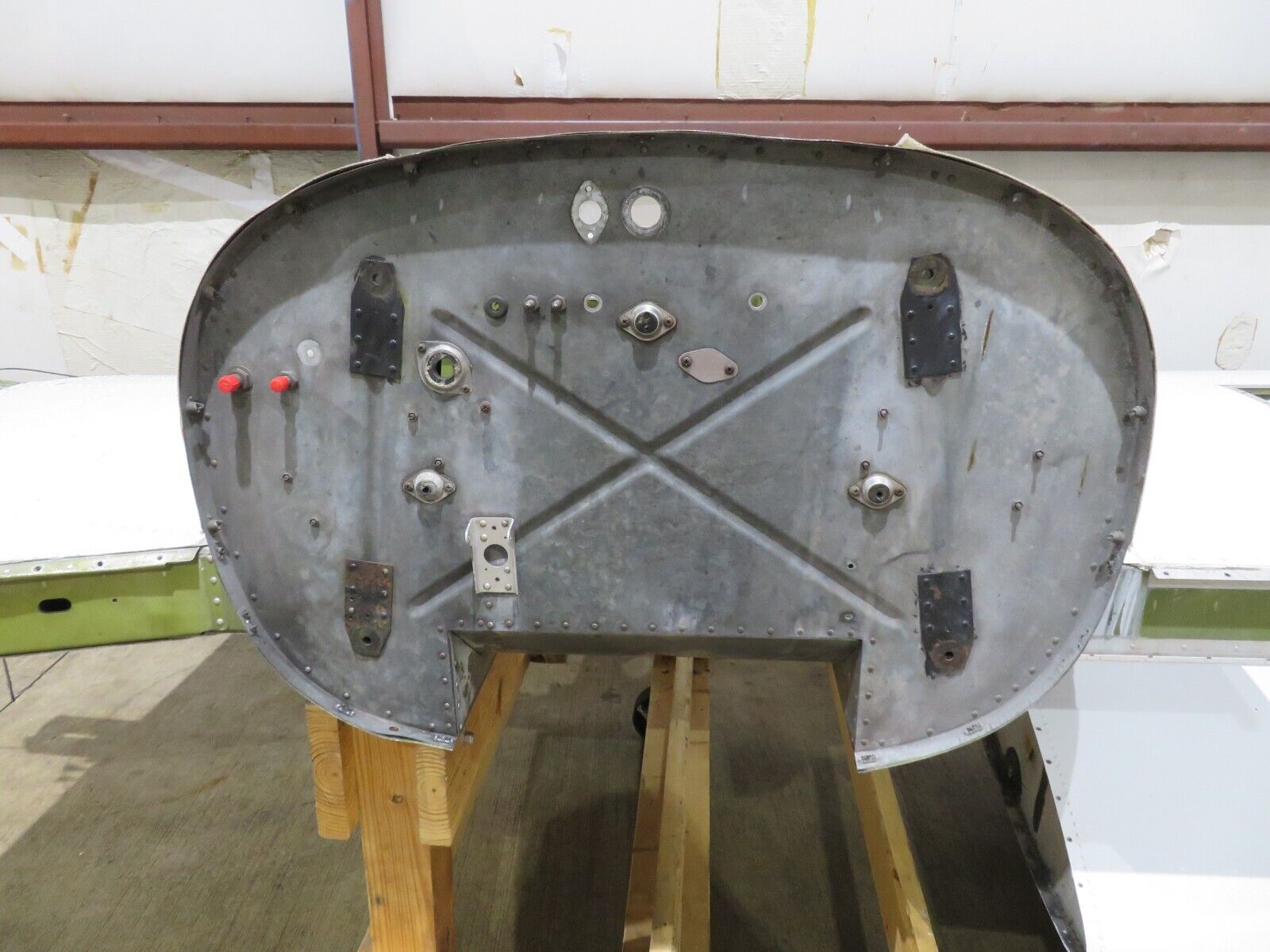

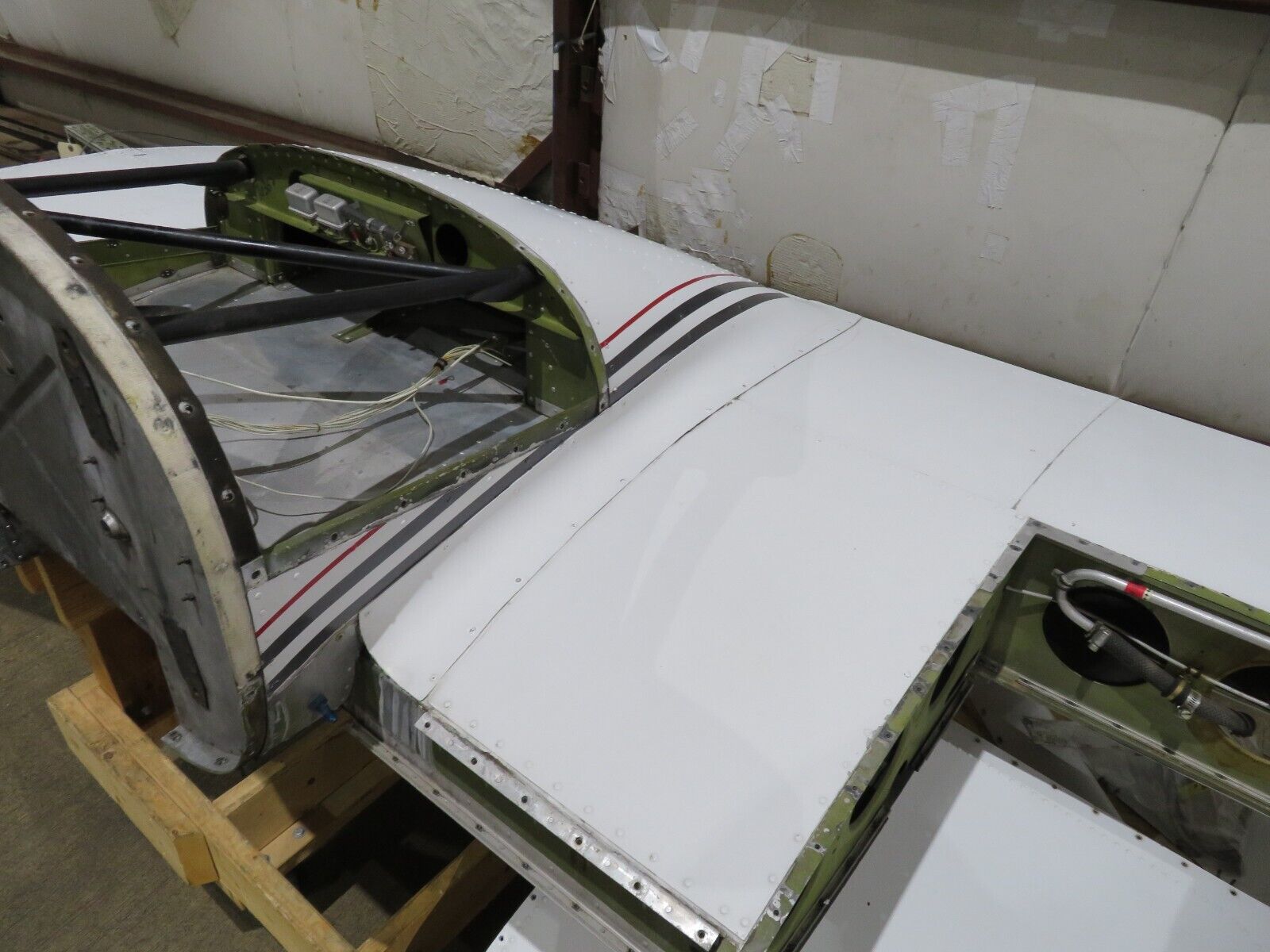

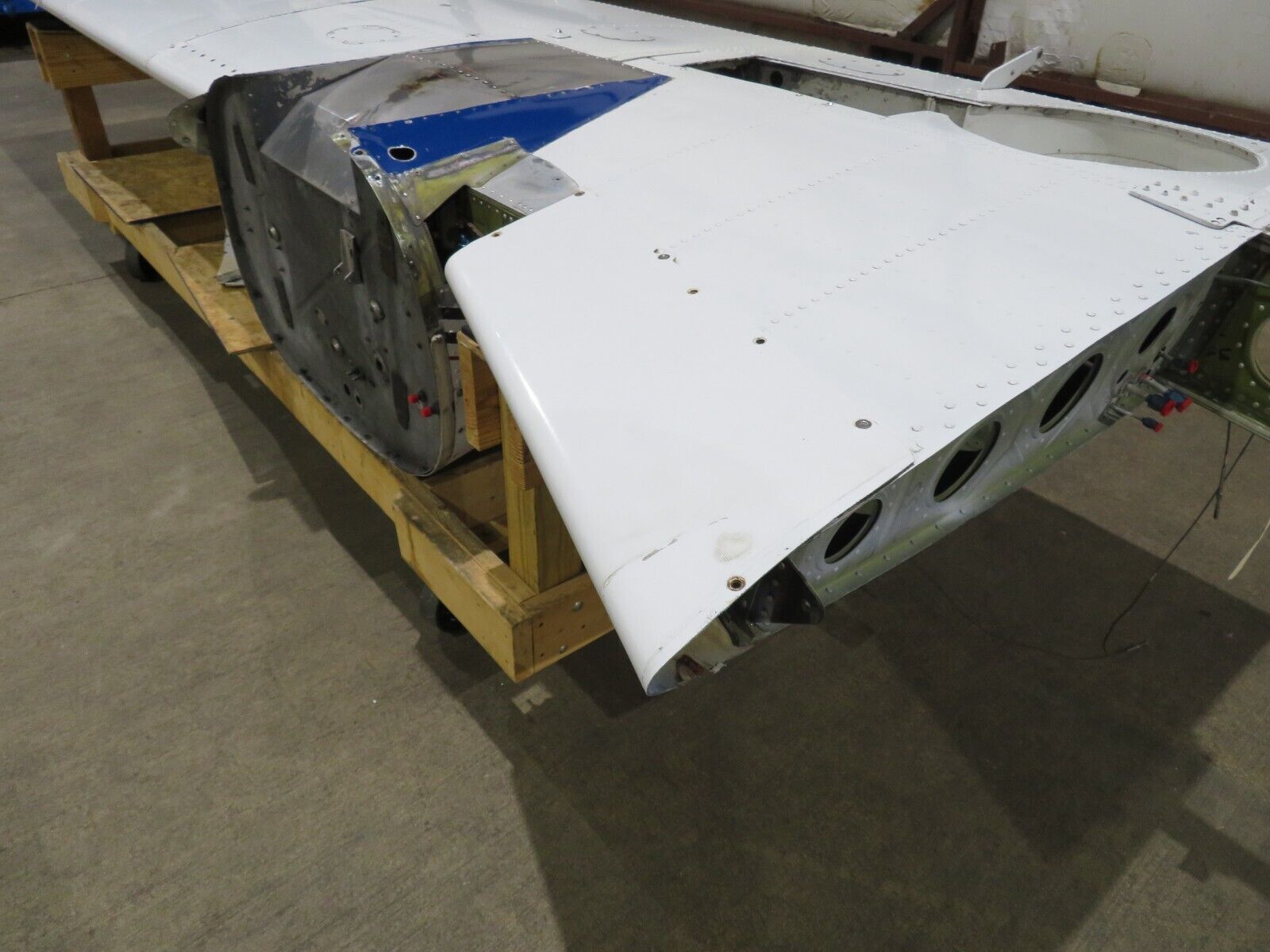

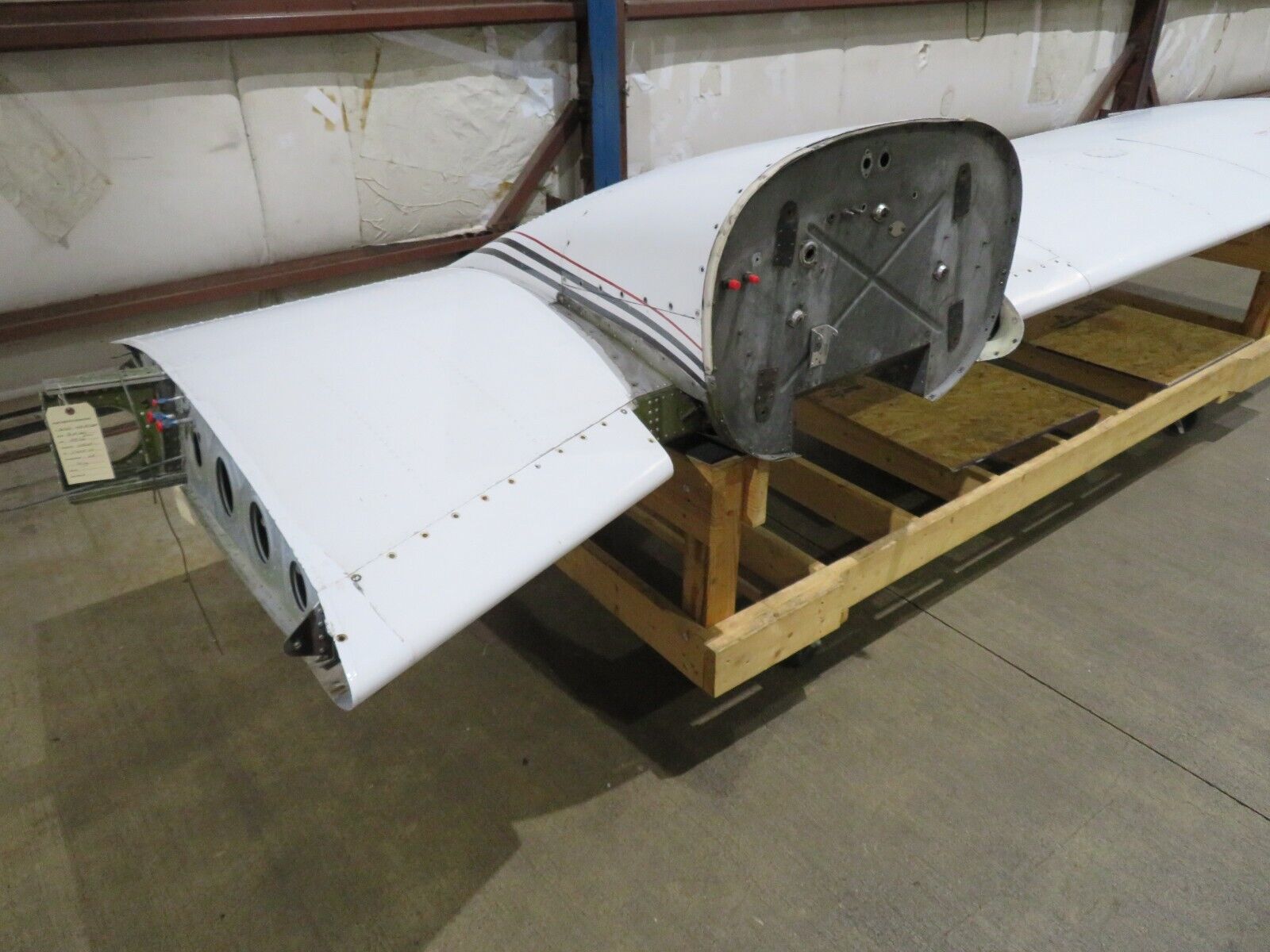

-All Wing and Nacelle Fairings

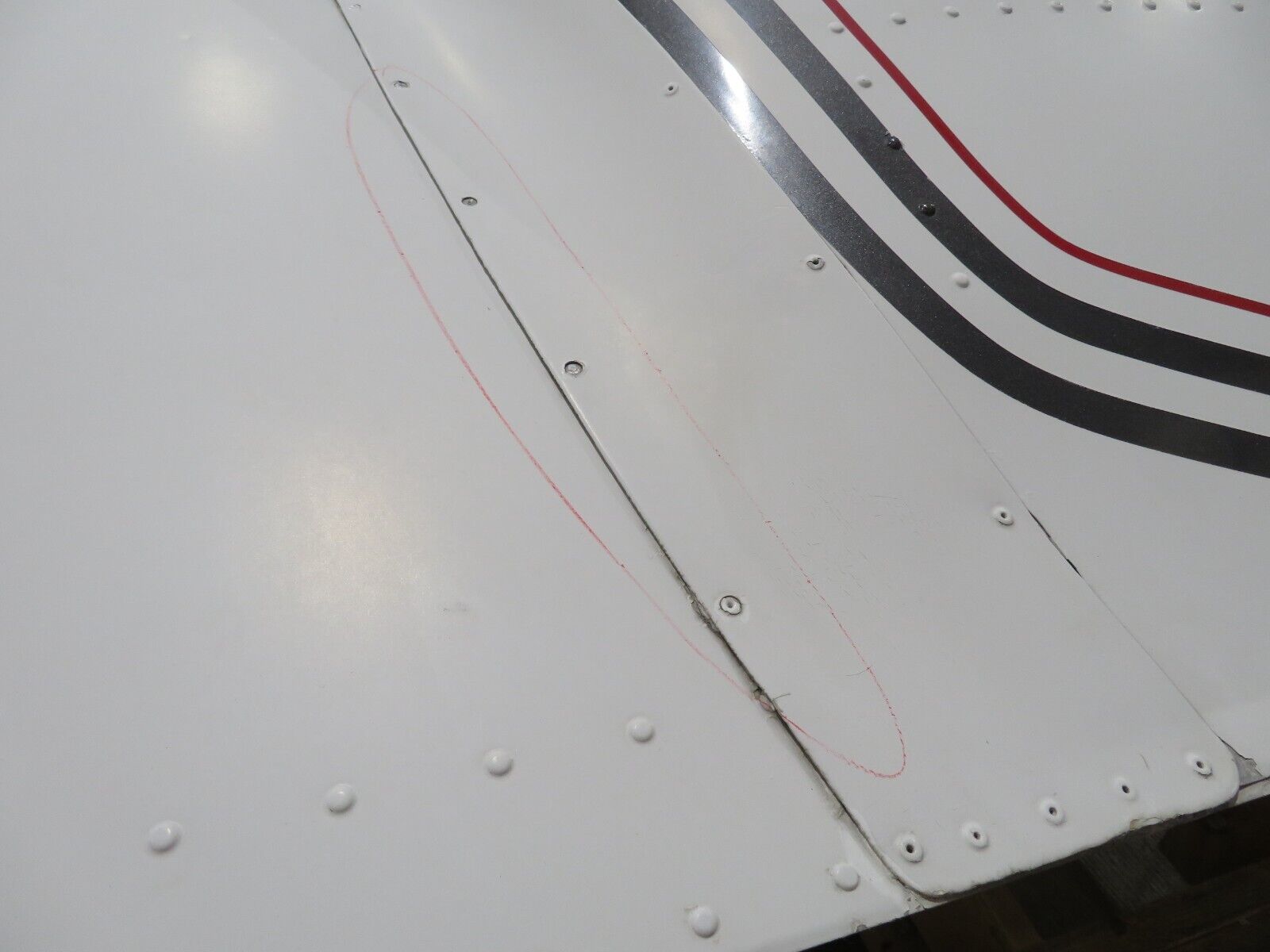

Putboard nacelle fairing skin is pulling thru the rivets.


30 Day Money Back Guaranteed less shipping costs. It is the buyer's responsibility to determine the parts suitability for installation and airworthiness upon inspection.

We are a full service aircraft maintenance shop that sells new aircraft parts from surplus inventory auctions and parts from salvaged airplanes. We try to be as clear as possible in the descriptions of the items we have listed for sale. If you have any question regarding the suitability or condition of a part please let us know and we will have one of our mechanics check it out and give an honest answer as to it's condition. Unless otherwise noted we will ship the majority of our items via UPS. Free shipping is usually USPS. Tracking information will be sent to the E-mail account on file with Paypal, so please make sure your information is up to date.


Safe Skies Aviation, LLC, Middletown Ohio 45042
