Heim Rod End P/N BHM-12G - NOS (0718-22)
Regular price
$95.00
Shipping calculated at checkout.

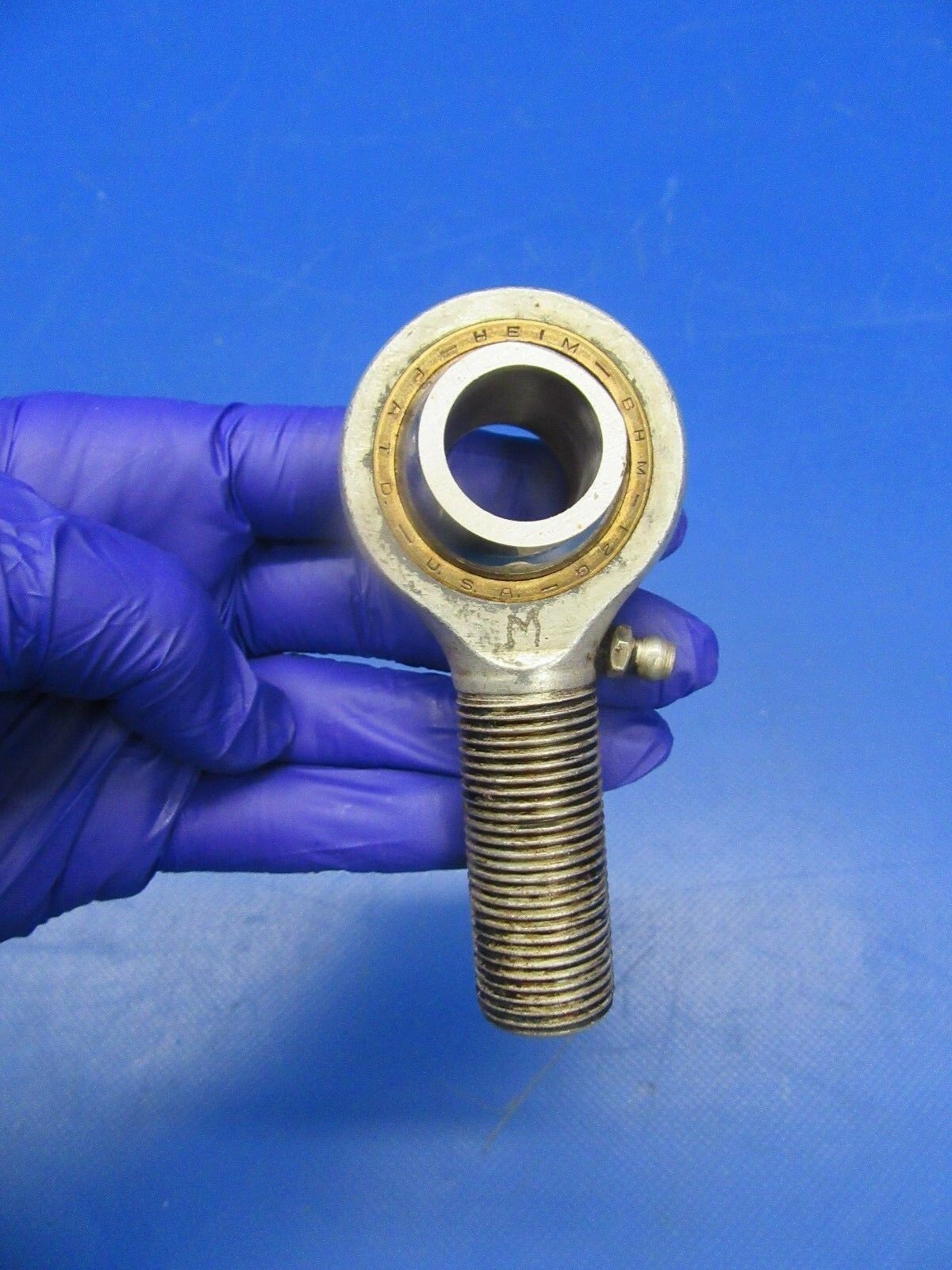

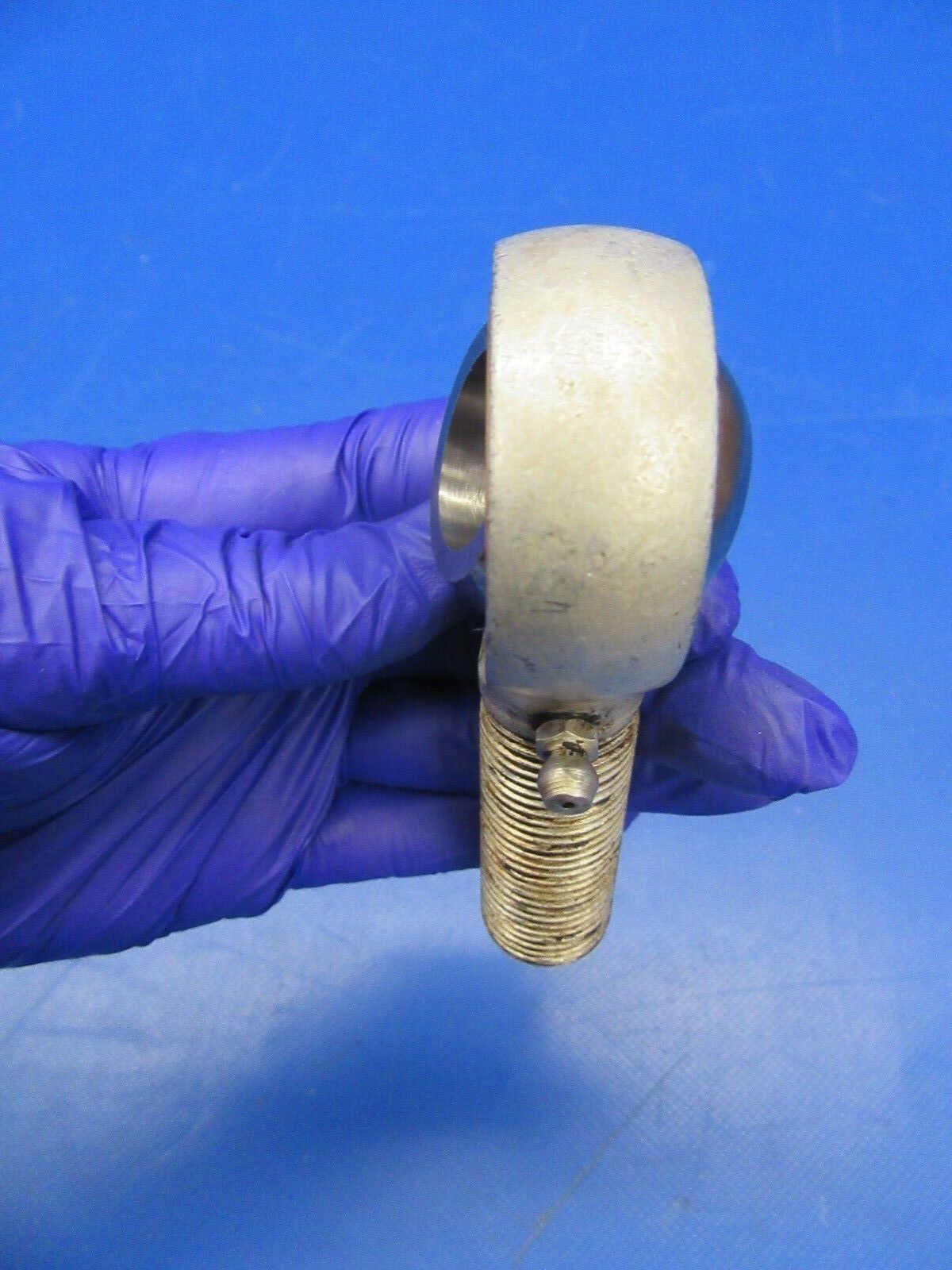

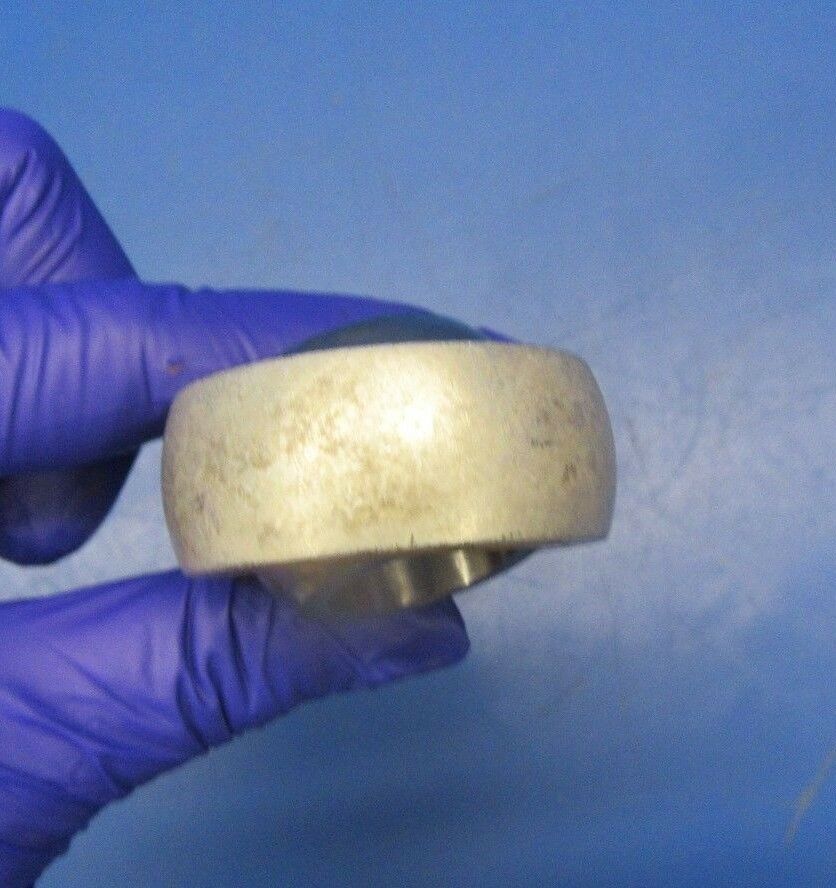

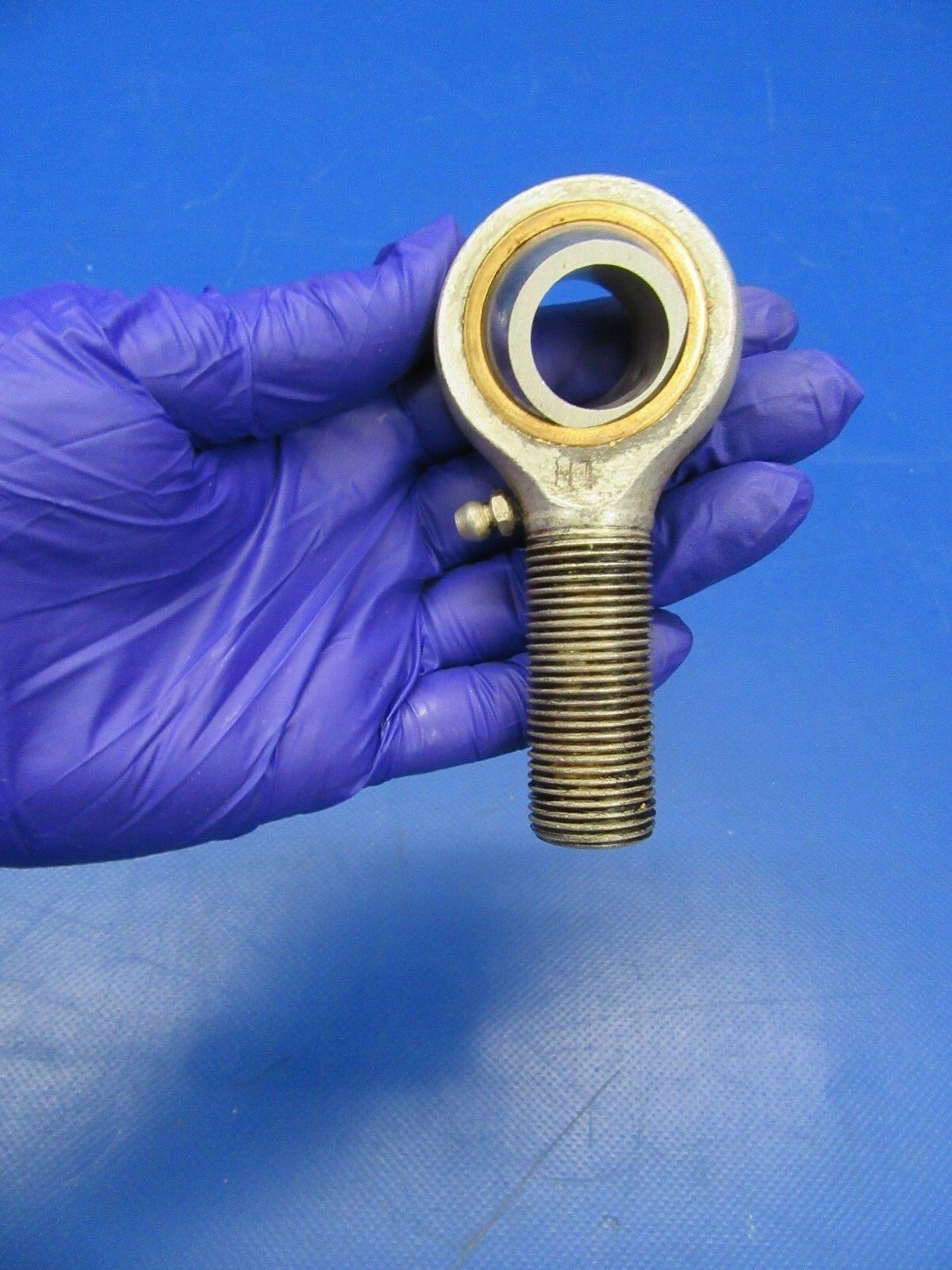

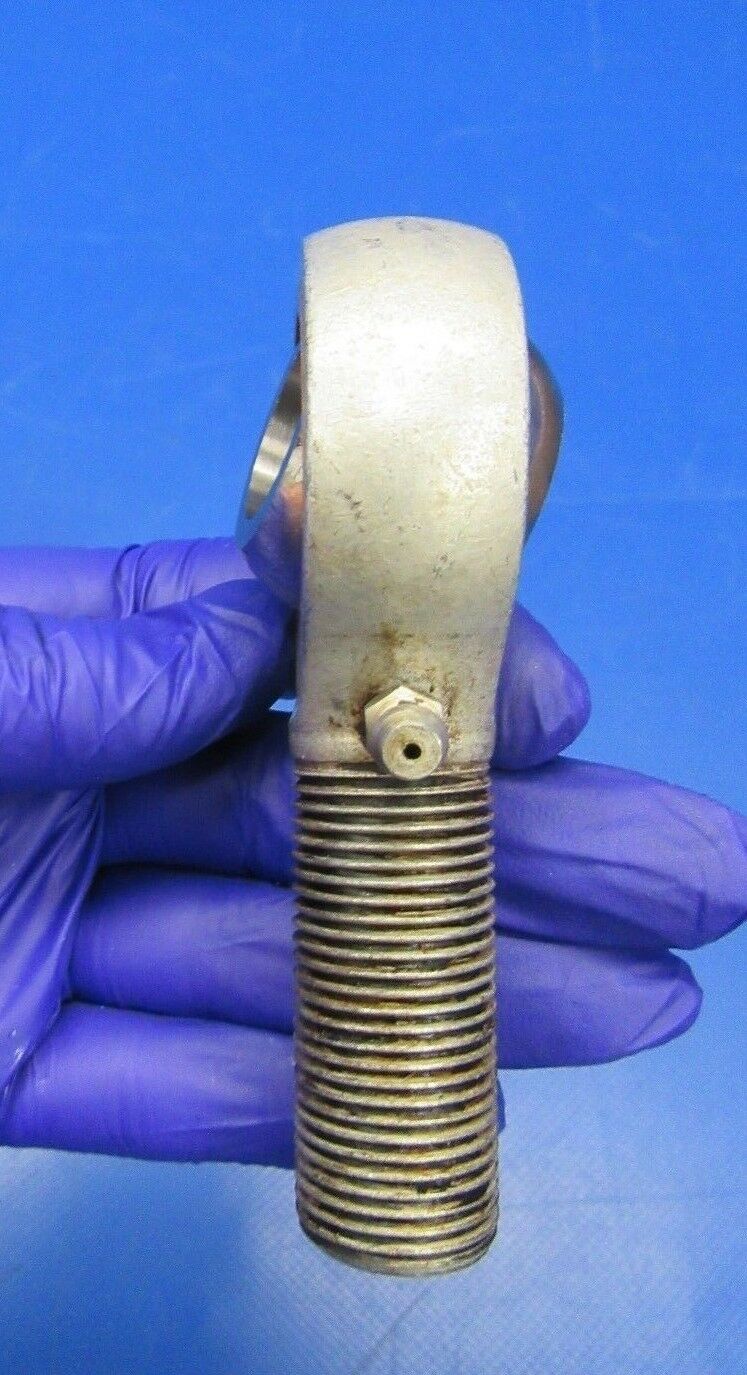

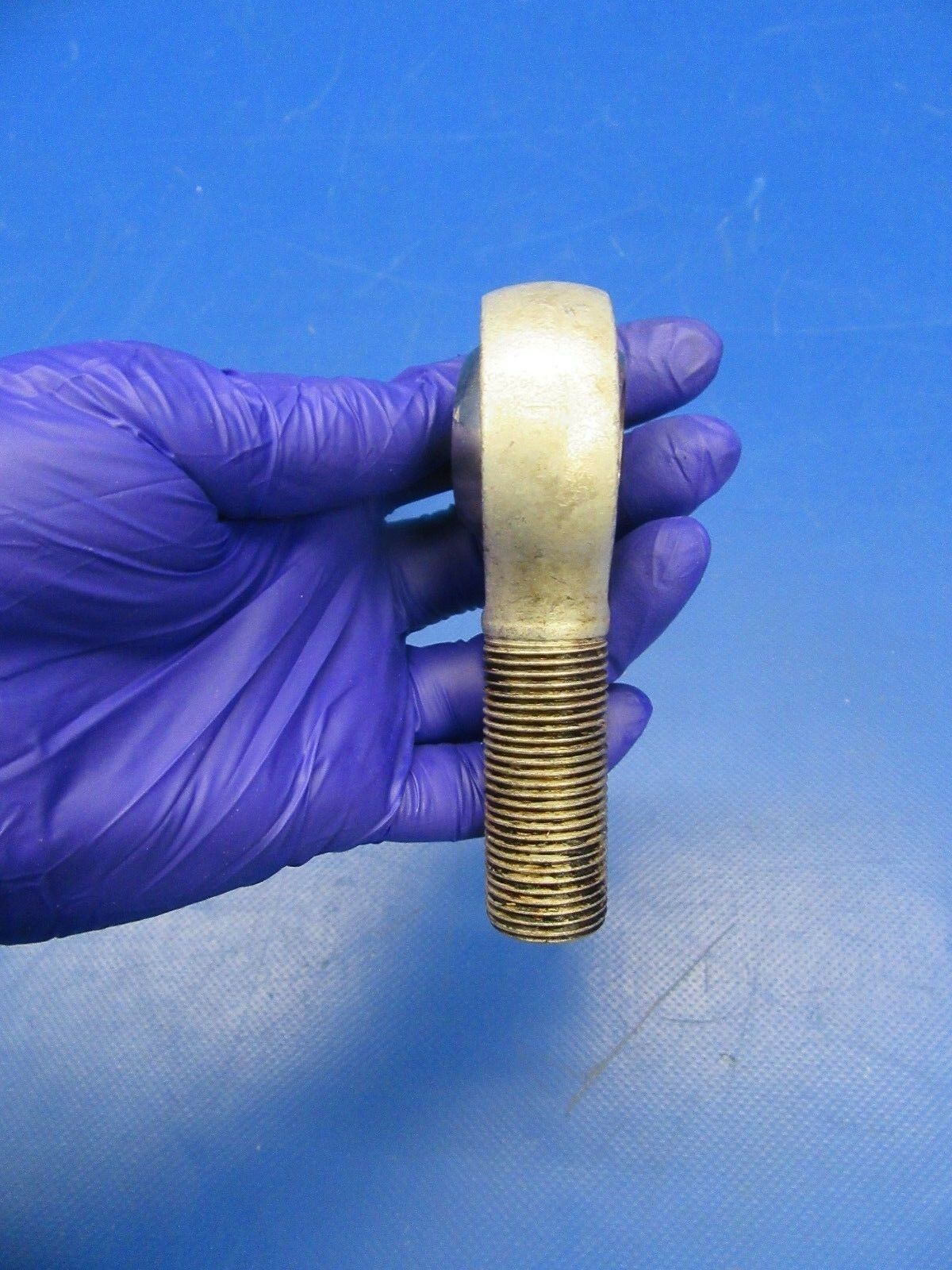

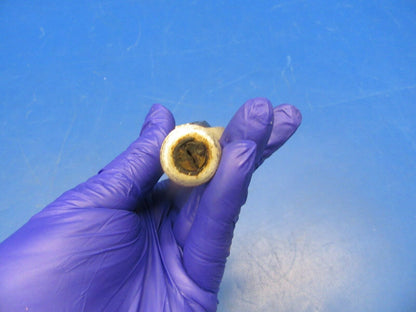

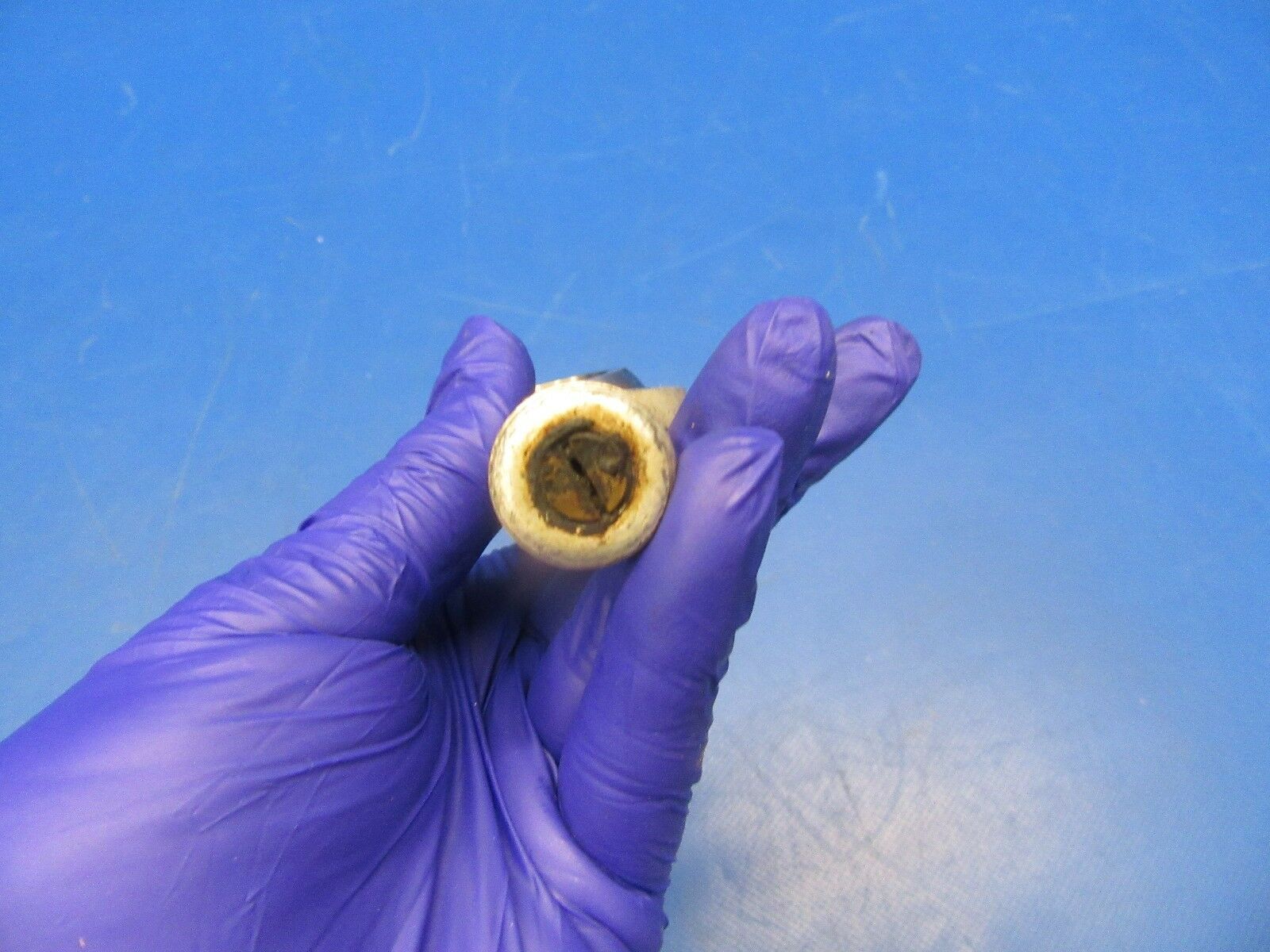

Heim Rod End. P/N BHM-12G. Appears to be new old stock but we can't prove it. These were purchased from an aviation maintenance company so they most likely have a aviation application. Below are the current specs for this rod end. The specs we were able to measure are the same on this NOS rod end. Guaranteed to pass inspection or your money back.
| Type | Male Spherical Plain Rod End |
| Weight | 0.29 kg 0.64 lb |
| Ball Material | 52100 Alloy Steel |
| Series | Heim® |
| Thread Type | UNF-3A |
| Bearing Type | 4 Piece - Metal-to-Metal |
| Performance | Precision Extra Capacity |
| Housing Material | 4130 or 4340 Alloy Steel |
| Insert Material | Aluminum Bronze |
| Thread Handedness | Right-Handed |
| Static Load Rating | 29800 lbf 132557 N |
| Operating Temperature [Max] | 121.1 ºC 250 ºF |
| Misalignment Angle | 7 º |
| Lubrication Type | Lubricatable |
| Thread Size | .7500-16 |
| Total Height | 3.75 in 95 mm |
| Thread Length | 1.750 in 44 mm |
| Head Diameter | 1.750 in 44 mm |
| Bore Size | 0.750 in 19 mm |
| Inside Ring Width | 22 mm 0.875 in |
| Ball Diameter | 1.312 in 33 mm |
| Head Width | 0.687 in 17 mm |
| Shaft Height | 2.875 in 73 mm |
30 Day Money Back Guaranteed less shipping costs. It is the buyers responsibility to determine the parts suitability for installation and airworthiness upon inspection.
We are a full service aircraft maintenance shop that sells new aircraft parts from surplus inventory auctions and parts from salvaged airplanes. We try to be as clear as possible in the descriptions of the items we have listed for sale. If you have any question regarding the suitability or condition of a part please let us know and we will have one of our mechanics check it out and give an honest answer as to it's condition. Unless otherwise noted we will ship the majority of our items via UPS. Free shipping is usually USPS. Tracking information will be sent to the E-mail account on file with Paypal, so please make sure your information is up to date.
